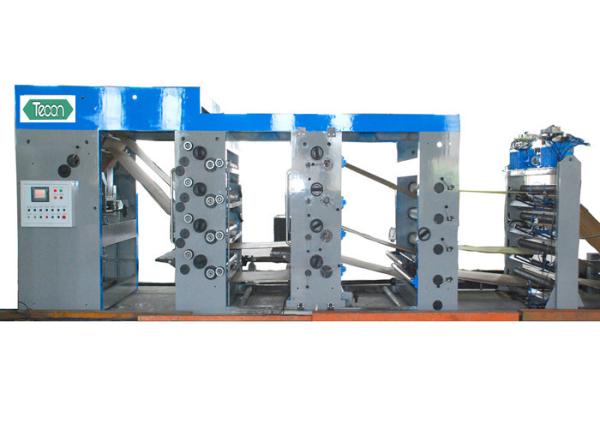

Bottom-pasted Paper Bag Manufacturing Machine , Lime Bags Making Equipment

Product Categories

Tecon Package Machinery Limited

Contact Now

Name: Bottompasted Paper Bag Manufacturing Machine Lime Bags Making Equipment
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT9804

Certification : CE

Place of Origin : China

MOQ : 1Unit

Price : negotiation

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Colour : customized

Total Weight : 30T

Main Drive Motor : 30kw

Size : 34.3m×2.4m×2.7m( L×W×H)

Cut Type : Straight

PLC : No

Contact Now

Automatic and High-speed Bottom-pasted Paper Bag Making Machine for Lime

Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase
Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
4-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

ZT9804 Tuber Machine
Operating condition

Performance

Speed	130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

Composing of the production line
ZT9804 Tuber Machine
