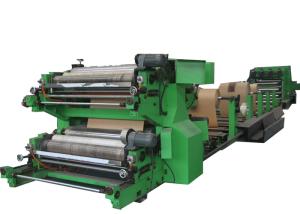

Motor-driven Sack Making Machine For Chemical Powder Bag , Paper Bag Machinery
Main Specification
1.Equipment Model (ZT9804)
2.Tube Length: 400~1400mm
3.Tube Width: 320~620mm
4.Tube Cut Length: 420~1400mm
5.Printing width: 1300 mmMAX
8.Diameter of paper roll: PDø1300 mmMAX
9.Width of paper roll: 660~1260 mm
10.Tube Speed(S): 130 pieces /minMAX
12.Main Drive Motor power: 47KW
13.Gross weight 33T
Technical parameters of our production line:
ZT9804 Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804
|
Performance
|
Speed
|
130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
670~1035 mm
|
|
Tube width
|
420~600 mm
|
|
Space between tape steps
|
20 mm
|
|
Tube Cut Length
|
670~1035mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Diameter of print roller
|
ø144～ø314 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
860~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
30kw
|
|
Size of whole set
|
34.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
30 T
|
Composing of the production line
ZT9804 Tuber Machine
|
Name
|
Quantity
|
|
4-color printing machine
|
1
|
|
Paper reel stands
|
1
|
|
Paper web guider
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|
Perforation machine
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off
|
1
|
|
Delivery & counting line
|
1
|
|
Electric control system
|
1 (Schneider, German)
|
|
Air compressor
|
1
|
Bag Sample:
