Technical parameters of our production line:

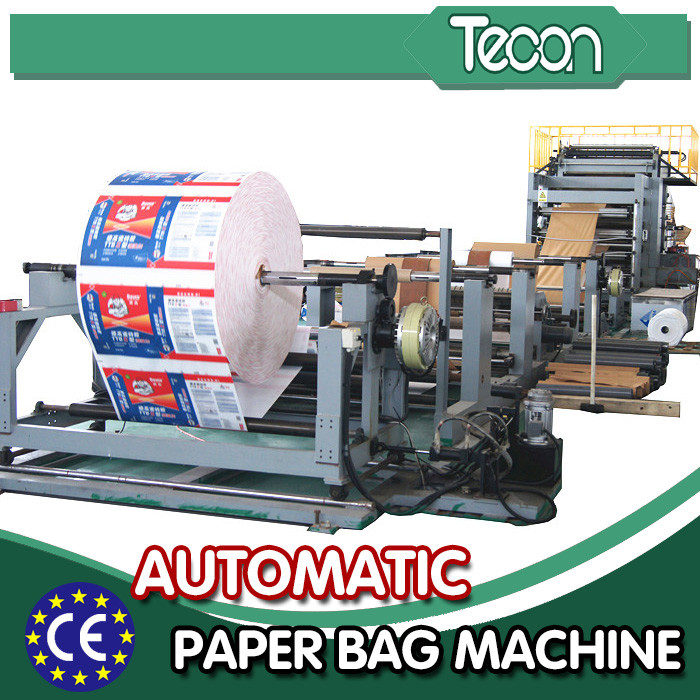

ZT9804S Tuber Machine
Speed | 80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length | 400~1400 mm |
| Tube width | 380~620 mm |
| Type of cutting | Step cut&Flat cut |
| Number of ply | 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Printing width | 1300 mm(MAX) |
| Paper reel width | 660~1260 mm |
| Paper reel diameter | Max. 1, 300 mm |
| Main drive motor | 47kw |
| Size of whole set | 35.3m×2.4m×2.7m( L×W×H) |
| Total weight | 32.5T |

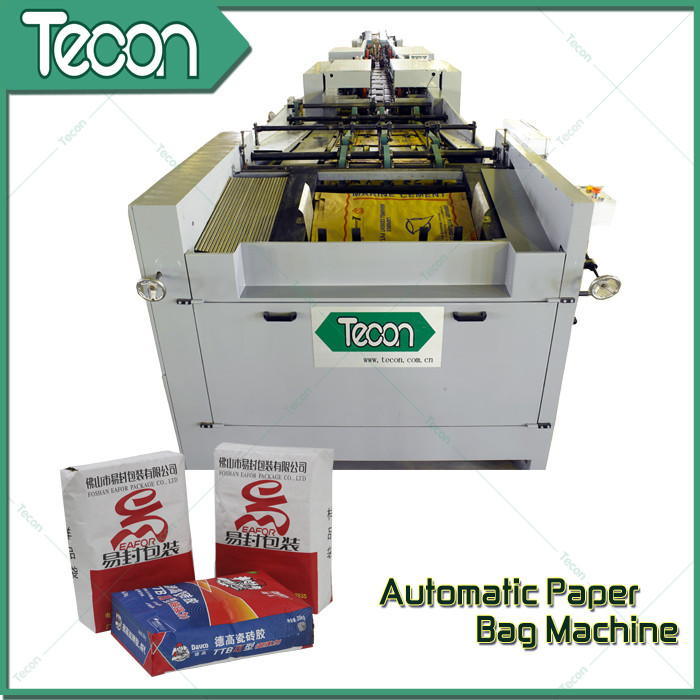

HD4916B Bottomer
| Working speed | 80~130 bags/min |
| Bag width | 420~600 mm |
| Bag length | 520~880mm |
| Bottom width | 90~130mm |
| Distance between bottom centers | 420~780mm |
| Valve sheet length | 100~250mm |
| Valve sheet width | 120~170mm |
| Main drive motor | 33kw |
| Total weight | 22.7T |
ZT9804S Tuber Machine compose of following parts
| Name | Quantity |
| 4-color printing machine | 1 |
| utomatic paper rectifier | 1 |
| Auxiliary paper driver | 1 |
| Perforation unit | 1 |
| Latitudinal gluing machine | 1 |
| Longitude gluing machine | 1 |
| Tubes forming unit | 1 |
| Driving tearing-off unit | 1 |
| Delivery and counting unit | 1 |
| Electric control system | 1 (Schneider) |
| Air compressor | 1 |
| Servo system | 1 |
HD4913 Bottomer machine compose of following parts
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation machine | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 |
| Delivery and counting unit | 1 |
| Electric control system | 1 (Schneider, German) |
| Vacuum-pump | 1 (Schneider, German) |
| Outside reinforcement sheet | 1 |
Operating condition
Working hour : 8~22 hours/day
Design temperature : 0~40℃
Design humidity : MAX. 95%
Number required : 1 unit
Model name : ZT9804
Performance
Speed : 130~150 tubes/min
(Depends on paper quality, number of ply and operators’ skill.)
Tube length : 700~1005 mm
A Shape Tube width : 470~580 mm
Space between tape steps : 20 mm
Number of ply : 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film
Diameter of print roller :ø144～ø314 mm
Printing width :1300 mm(MAX)
Paper reel width : 860~1260 mm
Paper reel diameter : Max. 1, 300 mm
Air consumption : 1,100L/min
Main drive motor : 30kw
Size of Tuber machine : 34.3m×2.8m×2.7m ( L×W×H)
Total weight : 30.5T
Bottomer machine’s technological process
| Brand Name: | Tecon |
| Model Number: | ZT9804 |
| Certification: | CE |
| Place of Origin: | China |
| Total Weight | 30T | Main drive motor | 30KW |
| Size | 34.3m×2.4m×2.7m( L×W×H) | Air consumption | 1,100L/min |
| Working hour | 22 hours/day | Design temperature | 0~40℃ |
