Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

Name: SheetFeeding Production Fully Automatic Paper Bag Making Machine 30kw
Brand: Tecon
Price: 1 USD

China Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw wholesale

Brand Name : Tecon

Model Number : HD8913F (HD4913)

Certification : CE

Place of Origin : China

MOQ : 1 Set Production Line

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 16Pcs Per Year

Delivery Time : 3-5 months after received your payment

Packaging Details : Wooden case

Working hour : 8~22 hours/day

Design temperature : 0~40℃

Design humidity : MAX. 95%

Number required : 1 unit

Speed : 80~130 bags/min

Bag length : 510~780mm

Bag width : 430~550 mm

Bottom width : 90~130mm

Bottom open width : 200~380mm

Distance between bottom centers : 420~680mm

Size of whole set : 24.5m×4.0m×2.05m ( L×W×H)

Total weight : 32 T

Main drive motor : 30kw

Usage : cement

Handle Pasting : Automatic

Contact Now

Fully Automatic Sheet-Feeding Cement Paper Bag Machine Production

HD series bottom pasting machine does pasting work to the paper tube. Bottom of paper tube can be folded automatically and pasted with glue, another end of tube also will be glued and valve patches can be pasted at this end. This machine can paste the external or internal reforcing sheet.

HD8913-F (HD4913) Bottomer Machine (bottomer with strength sheet pasting unit) Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD8913-F (HD4913)

Performance

Max Speed	110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	510-~780mm
Bag width	430~550mm
Bottom width	90~130mm
Bottom open width	200~440mm
Distance between bottom centers	420~650mm
Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	30kw
Total weight	22.7T
Size of whole set	23.0m×2.2m×2.05m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm
Number Patch Length	(2~4)layers＋1PP film

Composing of the production line HD8913-F (HD4913) Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1
Vacuum-pump	1

Usage and Characteristics

It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.

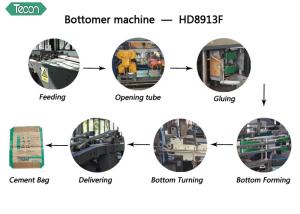

The Detail of Bottomer Machine

Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

Sample bags for cement, chemicals or foods.

Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

Production line staff assignments: 10 persons/line/shift

Tuber machine total	4 persons
Load paper and ink	1 persons
Turning on power	1 persons
Tubes collecting	2 persons

Bottomer machine total	6 persons
Feeding	1 persons
Gluing and Valve sheet part	2 persons
bags collecting	2 persons
patrol	1 persons

Welcome to contact us or visit our factory. We are ready here.
