Five Shafted Paper Reel Racks with Auto Rectifiction Servo System Tuber machine

Name: Five Shafted Paper Reel Racks with Auto Rectifiction Servo System Tuber machine
Brand: Tecon
Price: 1 USD

China Five Shafted Paper Reel Racks with Auto Rectifiction Servo System Tuber machine wholesale

Brand Name : Tecon

Model Number : ZT8762S ( ZT9804S )

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Step cut tube length (mm) : 500 - 1100

Straight cut tube length (mm) : 500 - 1100

A shape tube width (mm) : 370 - 620

Printing color : 4 color

Cutting type : Straight cut / step cut

Layers : 2 - 4 plies of paper + 1 PP / PE film optional

Max. speed : 150 tubes/min

Normal production speed : 80 - 120 tubes/min

Paper roll width max. (mm) : 1300

Overall dimension (m) : 35.3*3.1*3.2

Total power (KW) : 32

Design humidity : Max.95%

work hours : 300 days/year

Bearing : NSK Japan

Contact Now

Automatic Rectification and Adjustable Drive Aligning Servo System Tuber Machine

Configuration	ZTA008 4 color servo printing machine with blade
	ZTB006 servo type paper reel racks
	ZTC001 Paper web guider(servo type)
	ZTD001 paper rectifier
	ZTE002 Intermittent air hole unit
	ZTE102 Auxiliary paper driver(servo type)
	ZTE202 Latitudinal perforation unit(servo type)
	ZTE302 Latitudinal gluing unit(servo type)
	ZTE402 Longitude gluing unit(servo type)
	ZTF004 servo forming unit(no M shape)
	ZTG003 Driving tearing-off unit(servo type)
	ZTH001 Counting and delivery unit

Usage :

ZT8762S ( ZT9804S ) tuber machine can produce the paper bag that can wrapping cement,chemical,powder and some other PM material.It could product step and straight cutting tuber.The machine is automatic,except the operation of reeling and guiding the scroll.

Composing :

Printing machine

Paper roll stands

Paper web guide

Automatic paper rectifier

Perforation unit

Gluing unit

Tubes forming unit

Driving tearing-off unit

Delivery&couting line

Setrvo control

Advantage :

Device	Function
Scraper type	Enhance the printing quality.
Print roller	Automatically disengage when the machine stops,preventing the paper sticking to the print roller.
Brake band	Educe the inertance of the rolling scroll.
Magnetic powder brake	Educe the inertance of the rolling scroll.
Constant tension control	Educe the inertance of the rolling scroll.
Paper web guide unit	Separate the different scroll.
Automatic paper rectifier	Make the paper on the right position
Servo system	Component on printing,perforation,gluing and separation. Length and width range will be enlarge and it have no need to change wheel when change produce other size of tuber.

Tuber machine spare parts sent for free :

Name	Location	Specification	Material	Quality
V type knife	ZTE0202005	V type knife 5MM	65Mn	16
Curved knife	ZTE0202002	curved knife	65Mn	22
gluing plate	ZTE0304001	5mm/ZT053-16-9A	rubber	2m²
Roller	ZTF0003020	ZT06-01-01	PU	4
press roller	ZTG0007008	HCZT07-04-05	PU	4
Cylinder	ZT03	CP95SDC80-80		4
Cylinder	ZT054-06	10Y-25D63N10K		8
A-C linker		3TF41.22-0XN2		2
auxiliary relay		3UA50 40-1C		4
Solenoid valve		4V210DC24V		2

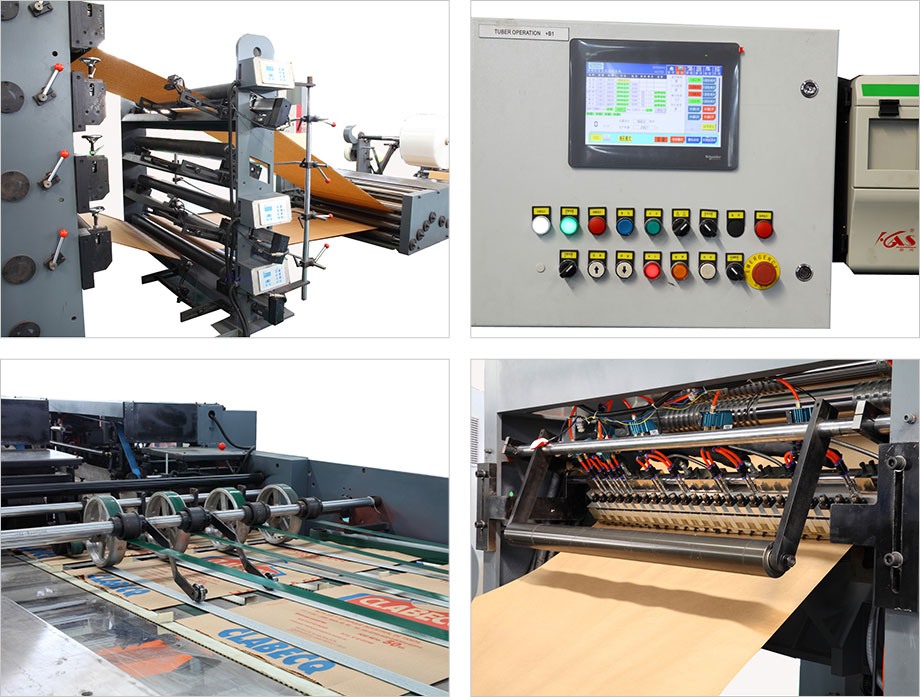

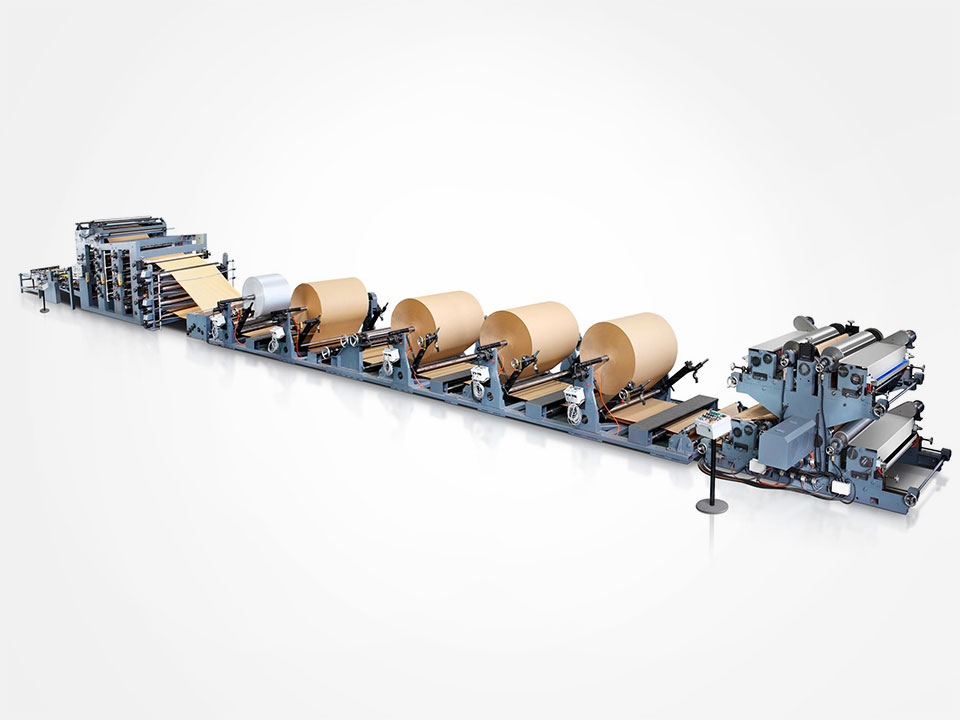

ZT8762S ( ZT9804S ) Tuber Machine :

Enhanced Type :
