Mutil-Wall Paper Bag Making Machine for Bottom Sealing with Automatic Feeder

Name: MutilWall Paper Bag Making Machine for Bottom Sealing with Automatic Feeder
Brand: Tecon
Price: 1 USD

China Mutil-Wall Paper Bag Making Machine for Bottom Sealing with Automatic Feeder wholesale

Brand Name : Tecon

Model Number : HD4916B

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Total Weight : 25T

Size : 23.5m×1.8m×1.8m( L×W×H)

Design temperature : 0~40℃

Bag length : 520~880mm

Bag width : 420~600 mm

Bottom width : 90~160mm

Contact Now

Mutil-Wall Paper Bag Making Machine for Bottom Sealing with Automatic Feeder

Features of our full-automatic paper bag production line

Strength Sheet;
Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc;
4-color automatic printing ;
2~4 paper layers, with one extra PE/PP film available ;
35~50 million bags/year;
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system ;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase.

Technical parameters of our production line

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4916B

Performance

Max Speed	110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~160mm
Bottom open width	200~440mm
Distance between bottom centers	420~780mm
Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	23.5m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm
Number Patch Length	(2~4)layers＋1PP film

Composing of the production line

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (German Siemens)
Vacuum-pump	1 (German Rietschele)
Bearing	(Janpan NSK)

Brief Introduction

Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the

first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world

top three in this industry and the only one in China able to design & manufacture the whole production

line of bottom sealed paper bag.

The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.

We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,

Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.

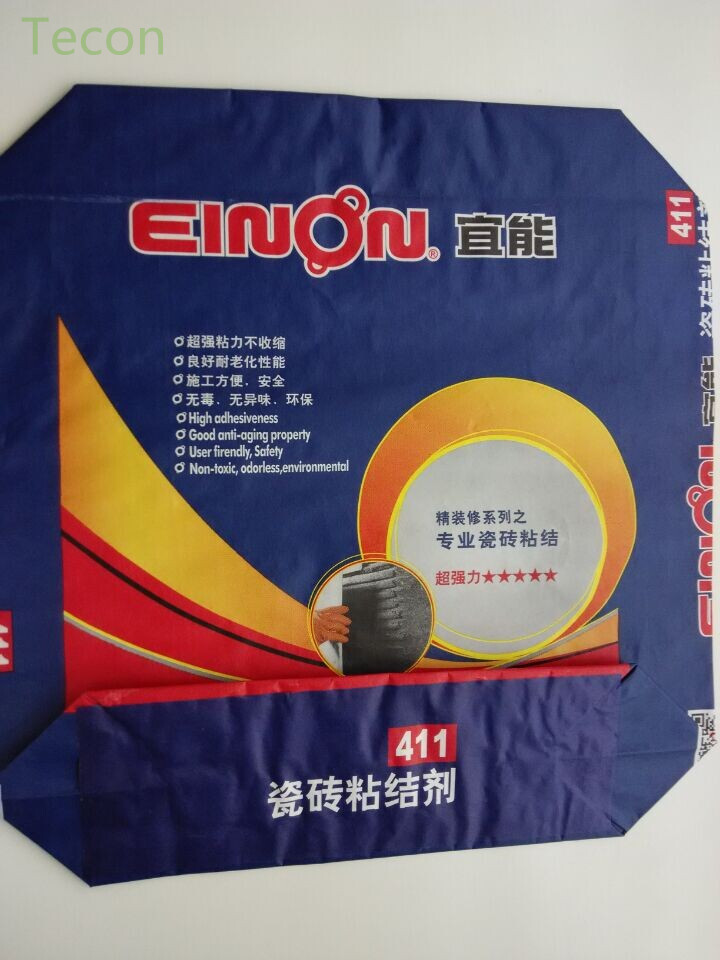

Sample Bag

Mutil-Wall Paper Bag Making Machine for Bottom Sealing with Automatic Feeder
