High Speed Multi-layer and Bottom-pasted Paper Bag Making Machine with Miniature Circuit Breaker

Name: High Speed Multilayer and Bottompasted Paper Bag Making Machine with Miniature Circuit Breaker
Brand: Tecon
Price: 1 USD

China High Speed Multi-layer and Bottom-pasted Paper Bag Making Machine with Miniature Circuit Breaker wholesale

Brand Name : Tecon

Model Number : ZT9802SD+HD4913B

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Servo system : Yes

Type of cutting : Step cut&Flat cut

Tuber Size : 34.3m×2.4m×2.7m( L×W×H)

Bottomer Size : 21.3m×2.3m×1.8m( L×W×H)

Paper Layer : 2~4paper+1PP/PE

Colour : Customized

Contact Now

High-speed Multi-layer and Bottom-pasted Paper Bag Making Machine with Miniature Circuit Breaker

Features of our full-automatic paper bag production line

Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
Different types for cement, chemicals, foods, tea, etc;
2~4 paper layers, with one extra PE/PP film available;
35~50 million bags/year;
4-color automatic printing;
Flat & glued bottom with filling valve;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase.

Technical parameters of our production line

ZT9802SD Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9802SD

Performance

Speed	120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	320~620 mm
Tube Cut Length	420~1400mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø196～ø312 mm
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	27kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	34 T

Composing of the machine
ZT9802SD Tuber Machine

Name	Quantity
2-color printing machine	1
Mill roll stands	5
Paper web guide	1
Automatic paper unwinding	1
Auxiliary web guide	1
Perforation unit	1
Cross stepped gluing unit	1
Longitude seam gluing unit	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electrical system	1 (Schneider, France)
Bearing	(NSK, Japan)
Compressor	1
Servo motors	4

HD4913B Bottomer Machine

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4913B

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913B Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)

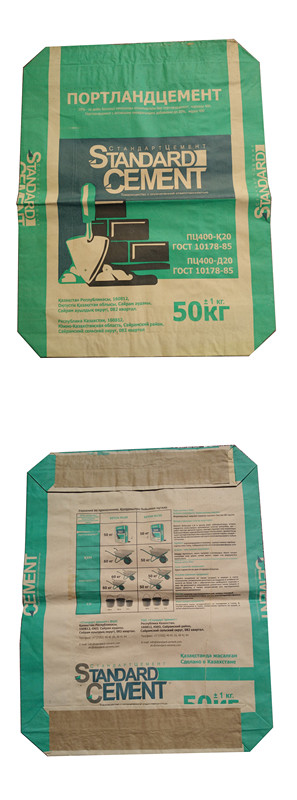

Sample Bags:
