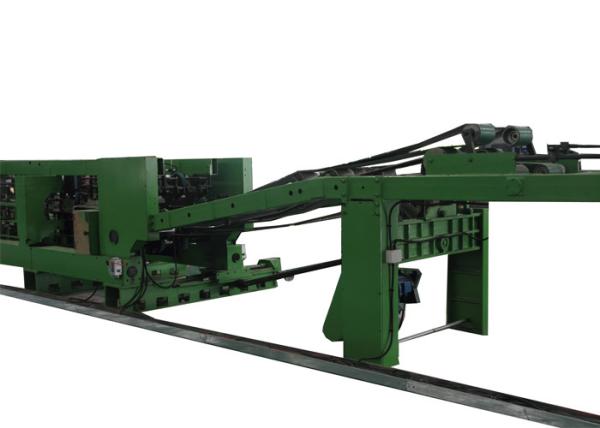

High-speed Automatic Kraft Paper Bag Making Machine for Seeds , Grains , Food Paper Bags

Item No.

Name

Unit

Specification Value

1

Bag Spew.

Length of bag tube

㎜

Cutoff length + 40

Cutoff length

㎜

700 -1050(±4)29 Grades,Each grade 12.5

Width of bag tube

㎜

400 – 600(no grade) adjustment

2

Printing spew.

Printing length

㎜

600 – 950

Printing width

㎜

1100

Printing ink

Ink

Color category

two-color overprint, four-color overprint

Formed thickness

㎜

6

3

Paper layer

layer

3 – 4

4

Production efficiency

bag / min

100 – 150

Name of Glue

Metamorphic Starch, Methyl or CMC

5

Scroll spew.

Width of Scroll

㎜

1220

Scroll diameter

㎜

1220

Diameter of scroll core

㎜

75 – 80

6

Main motor

Main Motor

Y180L – 4 TYPE, 22KW 1 unit

Main motor, delta belt

C-type, length: 2500mm quantity: 6

7

Total power

KW

30.9

Weight

T

34

Outline dimensions
(Length x Width x Height)

M

34 x 2.4 x 2.7

Working hour

22 hours/day

Design temperature

0~40℃

Design humidity

MAX. 95%

Number required

1 unit

Model name

HD4916

Speed

120 bags/min(Depends on paper quality, number of ply and operators’ skill.)

Bag length

520~880mm

Bag width

420~600 mm

Bottom width

90~160mm

Bottom open width

200~440mm

Distance between bottom centers

420~780mm

Valve sheet length

100~300mm(adjustable)

Valve sheet width

120~240mm(adjustable)

Main drive motor

33kw

Total weight

25T

Size of whole set

22m×1.8m×1.8m ( L×W×H)

Valve sheet reel diameter

Max.1,300mm

Name

Quantity

High speed feeder machine

1

Perforation machine

1

Tube opening unit

1

Automatic gluing machine

1

Scrip sealing machine

1

Bag bottom turning unit

1

Counting and delivery line

1

Automatic delivering out unit

1

Piling up platform

1

Electric control unit

1

Vacuum-pump

1
