Name: High Speed Automatic Glued Valve Sacks Making Machine for Cement Packaging Bags
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT9804+HD4913B

Certification : CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Colour : Customized

Bottomer Size : 21.3m×2.3m×1.8m( L×W×H)

Tuber Size : 34.3m×2.4m×2.7m( L×W×H)

Air consumption : 1,100L/min

Design temperature : 0~40℃

Material : Paper

Contact Now

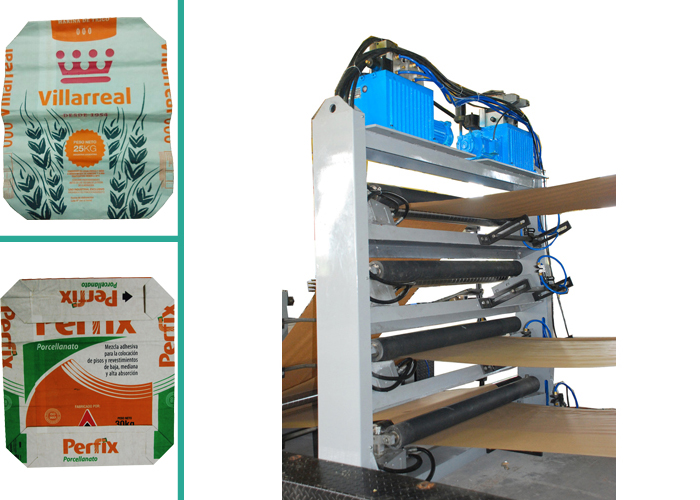

High-speed Automatic Glued Valve Sacks Making Machine for Cement

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
4-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.

ZT9804 Tuber Machine
Operating condition

Performance

Speed	130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

Composing of the production line
ZT9804 Tuber Machine

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913B Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)
