Lime Bags Automatic Paper Bag Making Machine , Machines for Making Paper Bags

Name: Lime Bags Automatic Paper Bag Making Machine Machines for Making Paper Bags
Brand: Tecon
Price: 1 USD

China Lime Bags Automatic Paper Bag Making Machine , Machines for Making Paper Bags wholesale

Brand Name : Tecon

Model Number : ZT9804+HD4916BD

Certification : CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Printing : 4-colour

Bottomer Size : 23.5m×2.3m×1.8m( L×W×H)

Tuber Size : 34.3m×2.4m×2.7m( L×W×H)

Bottomer Speed : MAX 80 bags/min

Tuber Speed : 130~150 tubes/min

Material : Paper

Contact Now

4- Colour Printing High-speed Automatic Glued Valve Sacks Making Machine for Lime

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
4-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.

Technical parameters of our production line

ZT9804 Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9804

Performance

Speed	130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

Composing of the production line
ZT9804 Tuber Machine

Name	Quantity
4-color printing machine	1
Paper reel stands	1
Paper web guider	1
Automatic paper rectifier	1
Auxiliary paper driver	1
Perforation machine	1
Latitudinal gluing machine	1
Longitude gluing machine	1
Tubes forming unit	1
Driving tearing-off	1
Delivery & counting line	1
Electric control system	1 (Schneider, German)
Air compressor	1

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4916BD

Performance

	HD4916BD
Speed	MAX 80 bags/min
Tube Width	380～620 mm
Bottom Width	80～160 mm
Valve Sheet Length *Width	(100-300)﹡(120-340)adjustable
Bag Length	390～1020 mm
Bottom Center Distance	290～860 mm
Number of ply	2~4paper+1 PP/PE
Strength sheet unit	YES
Strength sheet length *width	(270～520)﹡(80～160)
Main Drive Motor	35KW
Machine size	23.5﹡2.3﹡1.8(M)
Machine weight	N34(T)

Composing of the production line

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (German Siemens)
Vacuum-pump	1 (German Rietschele)
Bearing	(Janpan NSK)

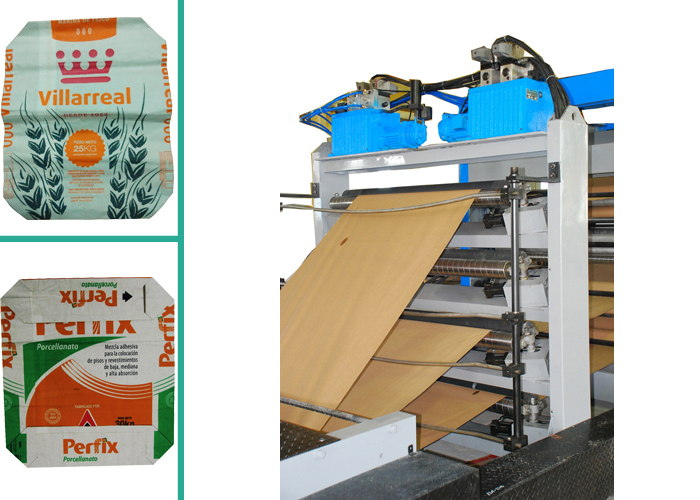

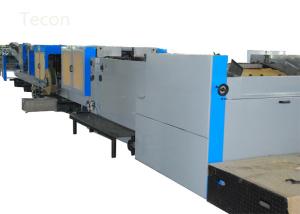

Our Machine
