Chemical Paper Bag Manufacturing Machine with Japan NSK Bearing

Name: Chemical Paper Bag Manufacturing Machine with Japan NSK Bearing
Brand: Foshan,Tecon
Price: 1 USD

China Chemical Paper Bag Manufacturing Machine with Japan NSK Bearing wholesale

Brand Name : Foshan,Tecon

Model Number : ZT9804S+HD4916

Certification : CE

Place of Origin : Guangdong,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10 sets per year

Delivery Time : 3-5months

Packaging Details : Wooden box , 5 sets of 40-foot high cabinet

Tuber Type : ZT9804S

Manufacturer : Tecon, China

Working hour : 16hours ~ 22hours per day

Air consumption : 1100l/min

Servo system : Available

Bottomer type : HD4916

Total main power : 80kw

Delivery time : 5 months after down payment received

Contact Now

Chemical Paper Bag Manufacturing Machine with Japan NSK Bearing

Tuber model:ZT9804S
Bottomer model:HD4916

Our advantage

1. Main parts from Germany/Japan,Like bearing adopt NSK brand.
2. Automatic & High speed availabel.Up to 35~50 million bags per year
3. Multi-functions
4. Different types for cement, chemicals, foods, tea, etc.
5. 4-color automatic printing

Technical parameters of our production line:
ZT9804S Tuber Machine

Speed(tubes/min)	80~120 (Depends on paper quality, number of ply and operators’ skill.)
Tube length(mm)	400~1400
Tube width(mm)	380~620
Type of cutting	Step cut&Flat cut
Number of paper layers	2~4 plus 1 PP or PE film(Please specify if you need paper bag with PP film)
Printing width(mm)	1300 (MAX)
Paper reel width( mm)	660~1260
Paper reel diameter(mm)	Max. 1, 300
Main drive motor(kw)	47
Size of whole set( L×W×H)mm	35.32.42.7
Total weight(T)	32.5

HD4916 Bottomer

Working speed(bags/min)	80~160
Bag width(mm)	420~600
Bag length(mm)	520~880
Bottom width(mm)	90~160
Distance between bottom centers(mm)	420~780
Valve sheet length(mm)	100~300
Valve sheet width(mm)	120~240
Main drive motor(kw)	33
Total weight(T)	25

ZT9804S Tuber Machine compose of following parts

Name	Quantity
4-color printing machine	1
Mill roll stands	5
utomatic paper rectifier	1
Auxiliary paper driver	1
Perforation unit	1
Latitudinal gluing machine	1
Longitude gluing machine	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electric control system	1 (Schneider)
Air compressor	1
Servo system	1

HD4913 Bottomer machine compose of following parts

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Piling up platform	1
Electric control unit	1
Delivery and counting unit	1
Electric control system	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)
Bearing	Japan,NSK

After-sale service
1.Provide training during and after the commissioning at the buyer site.
2.One year warranty period from the acceptance at the buyer site.

3.Provide life long technical services and effective solutions.

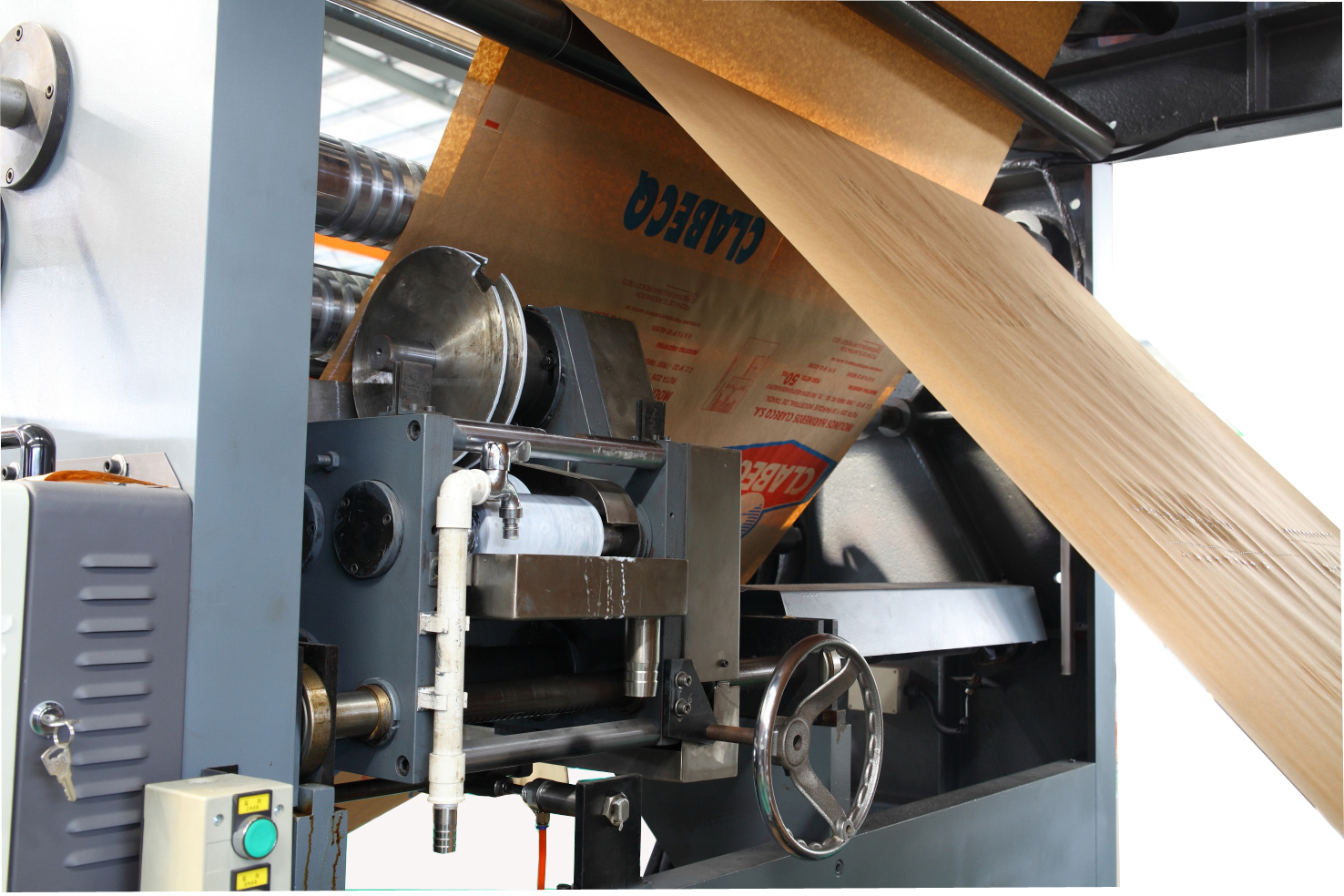

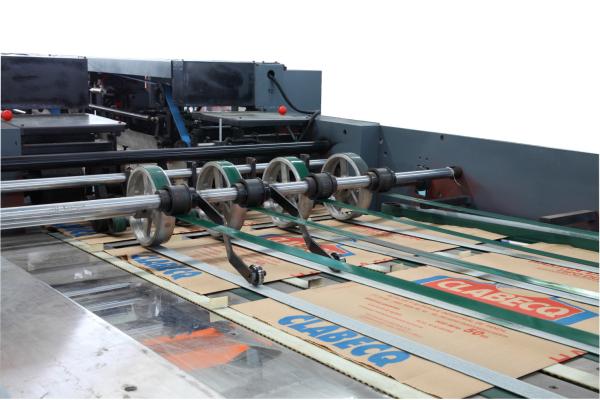

Machine details

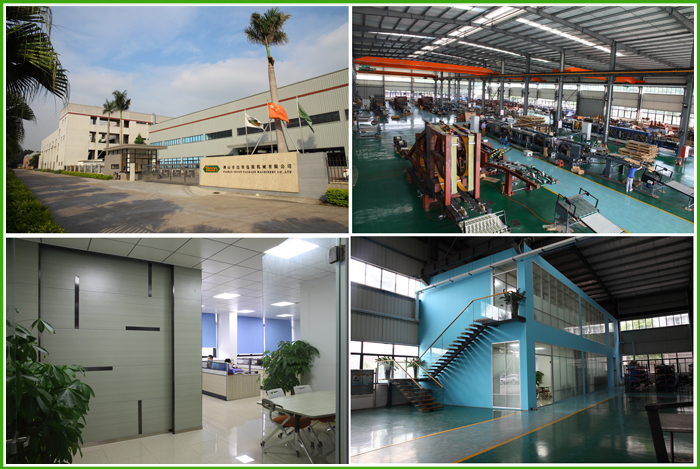

Our factory overview
