Professional Cement Bags Bottom Sealing Paper Bag Manufacturing Machine Full Automatic

Name: Professional Cement Bags Bottom Sealing Paper Bag Manufacturing Machine Full Automatic
Brand: Tecon
Price: 1 USD

China Professional Cement Bags Bottom Sealing Paper Bag Manufacturing Machine Full Automatic wholesale

Brand Name : Tecon

Model Number : HD4913+ZT9802

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 16pcs per year

Delivery Time : 3-5 months after received your payment

Packaging Details : Ply Wood case

Working hour : 22 hours/day

Design temperature : 0~40℃

Design humidity : MAX. 95%

Competitor : WH or Newlang

Contact Now

130 Bags Cement Bottom Sealing Bag Making Machine With 2 Colors Printing Machine

HD4913 Bottomer Machine Operating condition

Speed	80~130 bags/min
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Technical parameters of ZT9802:

Item No.	Name		Unit	Specification Value
1	Bag Spew.	Length of bag tube	㎜	Cutoff length + 40
		Cutoff length	㎜	700 -1050(±4)29 Grades,Each grade 12.5
		Width of bag tube	㎜	400 – 600(no grade) adjustment
2	Printing spew.	Printing length	㎜	600 – 950
		Printing width	㎜	1100
		Printing ink		Ink
		Color category		two-color overprint, four-color overprint
		Formed thickness	㎜	6
3		Paper layer	layer	3 – 4
4		Production efficiency	bag / min	100 – 150
4		Name of Glue		Metamorphic Starch, Methyl or CMC
5	Scroll spew.	Width of Scroll	㎜	1220
		Scroll diameter	㎜	1220
		Diameter of scroll core	㎜	75 – 80
6	Main motor	Main Motor		Y180L – 4 TYPE, 22KW 1 unit
6	Main motor	Main motor, delta belt		C-type, length: 2500mm quantity: 6

Features of our full-automatic paper bag production line:

1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit

Our machine:

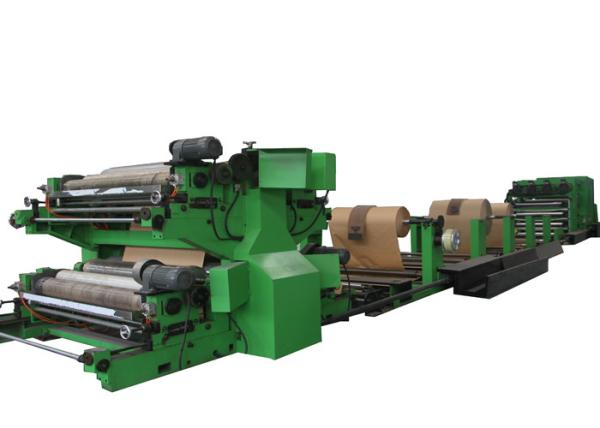

Automatic valve paper bag machine for cement,chemicals and food

Professional Cement Bags Bottom Sealing Paper Bag Manufacturing Machine Full Automatic

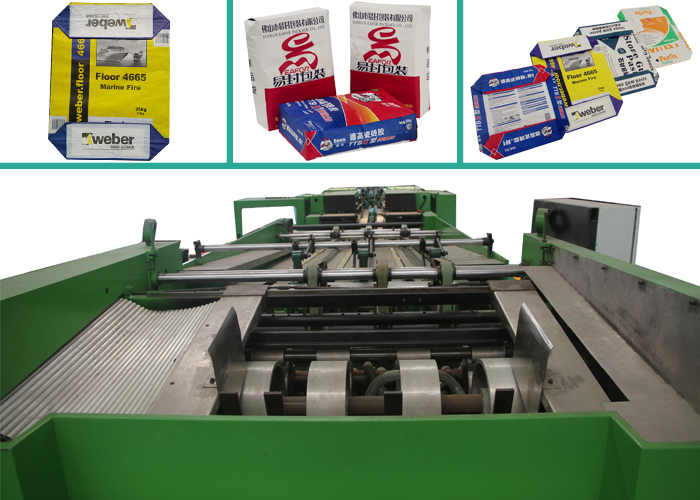

Sample bags:

Welcom to contact us or visit our .we are ready here.
