Valve Paper Sack Bottom Sealing Bag Making Machinery Production Line High Efficiency

Name: Valve Paper Sack Bottom Sealing Bag Making Machinery Production Line High Efficiency
Brand: Tecon
Price: 1 USD

China Valve Paper Sack Bottom Sealing Bag Making Machinery Production Line High Efficiency wholesale

Brand Name : Tecon

Model Number : HD4913+ZT9804

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 16pcs per year

Delivery Time : 3-5 months after received your payment

Packaging Details : Ply Wood case

Working hour : 22 hours/day

Design temperature : 0~40℃

Design humidity : MAX. 95%

Competitor : WH or Newlang

Contact Now

Valve Paper Sack Bottom Sealing Bag Making Production Line With 4 Colors

HD4913 Bottomer Machine Operating condition

Speed	80~130 bags/min
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Technical parameters of ZT9804:

Speed	130~150 tubes/min
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

Features of our full-automatic paper bag production line:

1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit

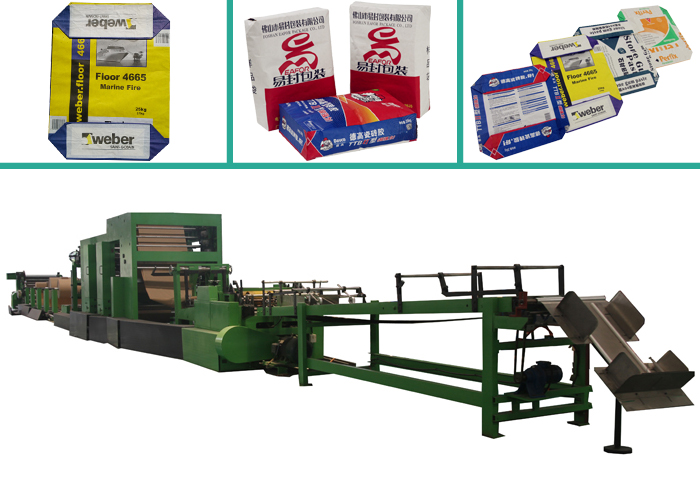

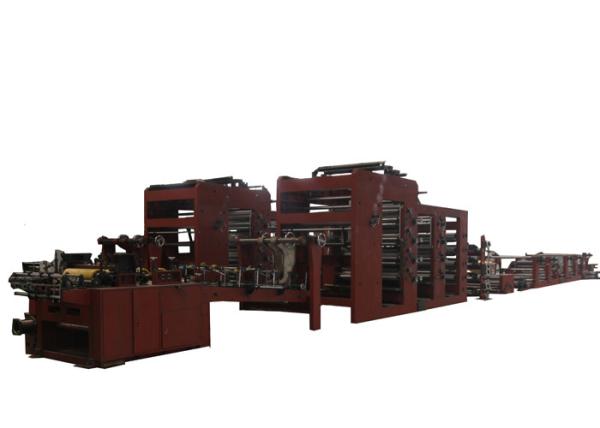

Our machine:

Automatic valve paper bag machine for cement,chemicals and food

Valve Paper Sack Bottom Sealing Bag Making Machinery Production Line High Efficiency

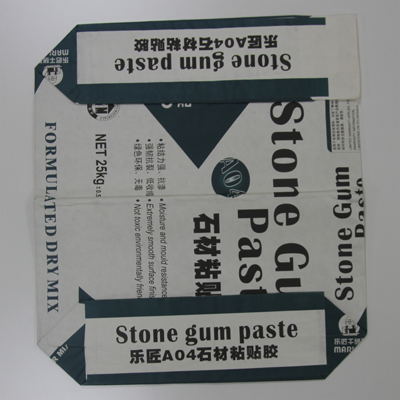

Sample bags:

Welcom to contact us or visit our .we are ready here.
