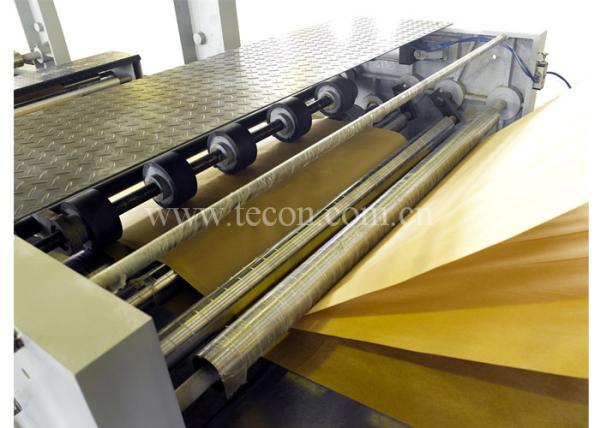

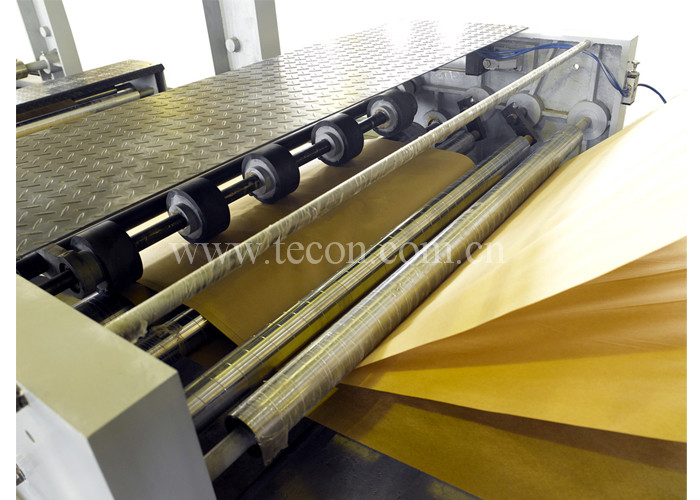

Energy Conservation Bottom Sealing Bag Making Machine with External Reinforcing
Brief Introduction:
Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 4 color printing, bottom
valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper
or clupak paper and one layer of PE material.
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Composing of the production line HD4913B Bottomer Machine :
1. High speed feeder machine
2. Perforation machine
3. Tube opening unit
4. Automatic gluing machine
5. Scrip sealing machine
6. Bag bottom turning unit
7. Counting and delivery line
8. Automatic delivering out unit
9. Piling up platform
10. Piling up platform
HD4913B Bottomer Machine Operating condition
| Working hour | 22 hours/day |
| Design temperature | 0~40℃ |
| Design humidity | MAX. 95% |
| Number required | 1 unit |
| Model name | HD4913B |
Performance
| Speed | 80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length | 520~880mm |
| Bag width | 420~600 mm |
| Bottom width | 90~130mm |
| Bottom open width | 200~380mm |
| Distance between bottom centers | 420~780mm |
| Valve sheet length | 100~250mm |
| Valve sheet width | 120~170mm |
| Main drive motor | 33kw |
| Total weight | 22.7T |
| Size of whole set | 21.3m×2.3.m×1.8m ( L×W×H) |
| Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4913B Bottomer Machine
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation machine | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Automatic delivering out unit | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 (Schneider, German) |
| Vacuum-pump | 1 (Schneider, German) |
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we
provide. Also we offer one year guarantee period, paid service for whole life.
Our machine:
Automatic valve paper bag machine for cement,chemicals and food
Sample Bag
