Paper Sack Bottom Sealing Bag Making Machine Automatic For Cement Packing
Features of our Bottom sealing bag making machine:
1. Flat & glued bottom with filling valve;
2. 2~4 paper layers, with one extra PE/PP film available ;
3. Strength sheet unit provided;
4. Multi funtional.
Technical parameters of our bottom sealing bag production line:
HD4916BD Bottomer
| Working speed | MAX .80 bags/min |
| Bag width | 380~620 mm |
| Bag length | 520~880mm |
| Bottom width | 80~160mm |
| Bottom centers distance | 290~860mm |
| Valve sheet length | 270~520mm |
| Valve sheet width | 80~160mm |
| Main drive motor | 35kw |
| Size of whole set | 23.5m×2.3.m×1.8m ( L×W×H) |
HD491BD Bottomer machine compose of following parts
1 set High speed feeder machine
1 set Perforation machine
1 set Tube opening unit
1 set Automatic gluing machine
1 set Scrip sealing machine
1 set Bag bottom turning unit
1 set Counting and delivery line
1 set Automatic delivering out unit
1 set Piling up platform
1 set Electric control unit (Schneider, German)
1 set Schneider, German Vacuum-pump.
After-sale service
1. Provide training during and after the commissioning at the buyer site.
2. One year warranty period from the acceptance at the buyer site.
3. Provide life long technical services and effective solutions.
About us
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer.
In 1996,We designed the first production line for Valve paper bag, and now we are top three listed in the world in this industry and the only one in China able to
design and manufacture the whole production line of bottom pasted paper bag. The leading product of
our company is the "high-speed automatic bottom pasted bag making machine"
It is composed of a tuber machine and a bottomer machine.
We have sold to Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,Kazakhstan,India,Indonesia,Sri-Lanka and so on. Our products have won CE certificate, and have lots of patents.

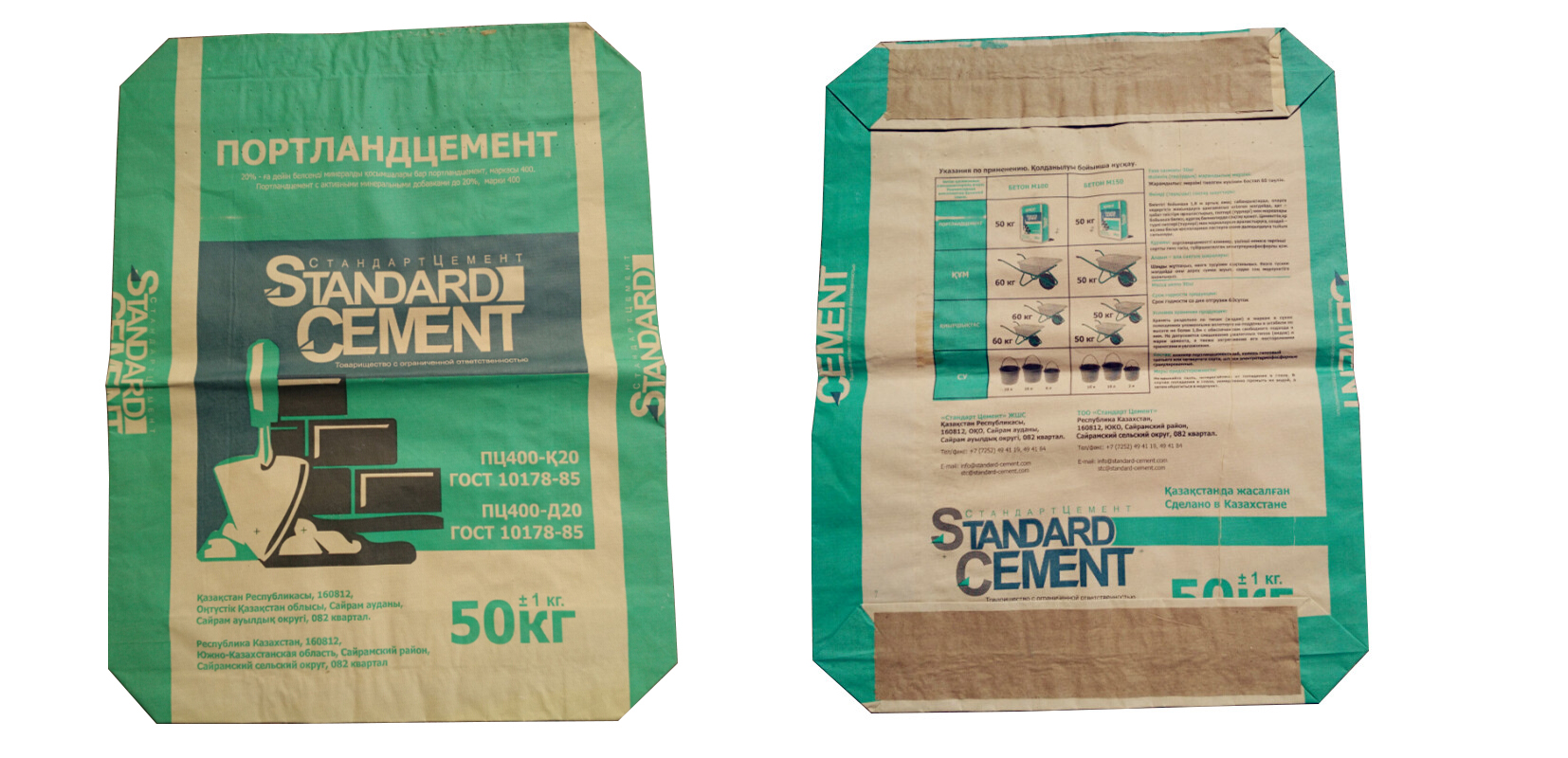

Sample bags
