Full Automatic Valve Paper Bag Making Machine High Efficiency Paper Bag Equipment

Name: Full Automatic Valve Paper Bag Making Machine High Efficiency Paper Bag Equipment
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : HD4916 + ZT9802S

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 Pcs

Price : Negotiation

Payment Terms : T/T or L/C

Supply Ability : 16pcs per year

Delivery Time : 3-5 months after received your payment

Packaging Details : Ply Wood case

Electrical system : Schneider from France

Bearing : (NSK, Japan) No Special Gear

Control : Servo System Control or PLC Control

Bag Type : For Powder Chemical, Cement, Coffee

Printing : 4 Color

Output : 5.35~50 million bags/year

Machine State : Whole Brand New Machine

Paper Reel Racks : 4.2~4 paper layers, with one extra PE/PP film available

Contact Now

Automtic Transport Valve Paper Bag Making Machine With High Speed Production 130 - 150 Bags Per Minute

Technical Informations of the production line:

Model: ZT9802s

Speed	100~160 tubes/min
Tube length	400~1400 mm
Tube width	320~620 mm
Type of cutting	Step cut/ Step cut + flat cut
Tube Cut Length	420~1400mm
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	33 T

Model: HD4916

Speed	120 bags/min
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~160mm
Bottom open width	200~440mm
Distance between bottom centers	420~780mm
Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	22m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Operating condition

Working Hour : 22 Hours / Day

Design temperature : 0~40℃

Design humidity : MAX. 95%

Number required : 1 unit

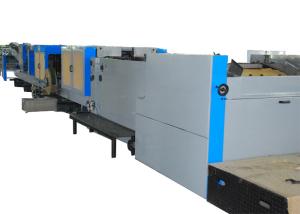

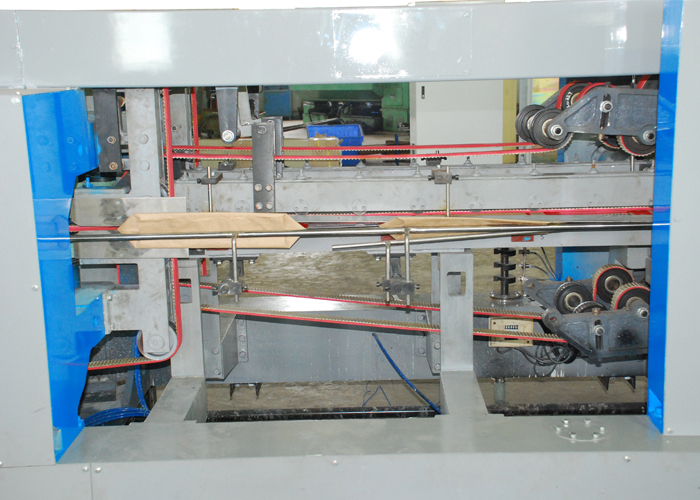

Our machine Details:

Full Automatic Valve Paper Bag Making Machine High Efficiency Paper Bag Equipment

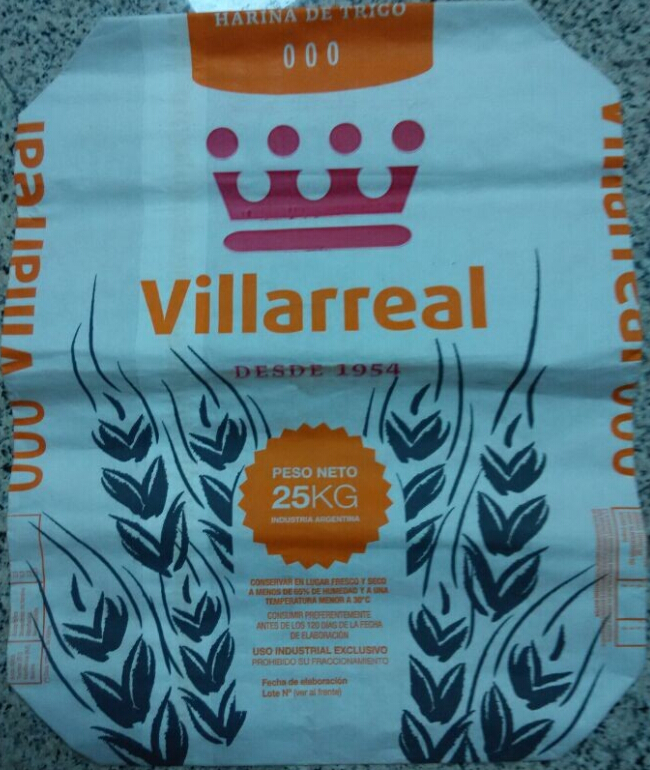

Sample bags:

Full Automatic Valve Paper Bag Making Machine High Efficiency Paper Bag Equipment

Applications:

ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper

bags, tea bags, chemical bags and so on, which need frequent specification changing and

high-precision printing quality, it can fully play its unique advantages.

If you are interested in our products, please do not hesitate to

contact us.
