Complete Automatic Valve Paper Bag Machines / Paper Bag Manufacturing Machinery

Name: Complete Automatic Valve Paper Bag Machines Paper Bag Manufacturing Machinery
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : HD4916BD+ZT9802S

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T or L/C

Supply Ability : 16 Pieces per Year

Delivery Time : 3-5 months after received your payment

Packaging Details : Ply Wood case

Electrical system : (Schneider, France)

Bearing : (NSK, Japan) No Special Gear

Other : Servo System Control or PLC Control Available

Bag Type : For Cement, Chemicals, Foods, Tea, etc.

Printing Color : 2 Colors

Output : 5.35~50 million bags/year

Competitors : Newlang or WH

Paper Reel Racks : 4.2~4 paper layers, with one extra PE/PP film available

Contact Now

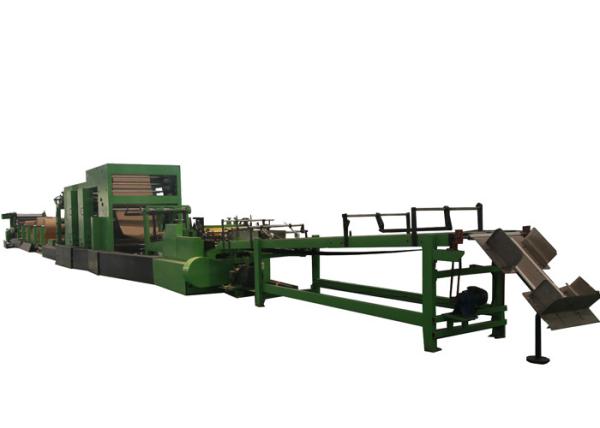

Complete Automatic Valve Paper Bag Making Machine Whole Production Line With Fast Speed

ZT9802S information

ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper

bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision

printing quality, it can fully play its unique advantages.

ZT9802S Performance

Speed	100~160 tubes/min
Tube length	400~1400 mm
Tube width	320~620 mm
Type of cutting	Step cut/ Step cut + flat cut
Tube Cut Length	420~1400mm
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	33 T

HD4916BD Performance

Speed	MAX 80 bags/min
Tube Width	380～620 mm
Bottom Width	80～160 mm
Valve Sheet Length *Width	(100-300)﹡(120-340)adjustable
Bag Length	390～1020 mm
Bottom Center Distance	290～860 mm
Number of ply	2~4paper+1 PP/PE
Strength sheet unit	YES
Strength sheet length *width	(270～520)﹡(80～160)
Main Drive Motor	35KW
Machine size	23.5﹡2.3﹡1.8(M)
Machine weight	34(T)

Composing of the production line:

HD4916BD Bottomer Machine (bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1

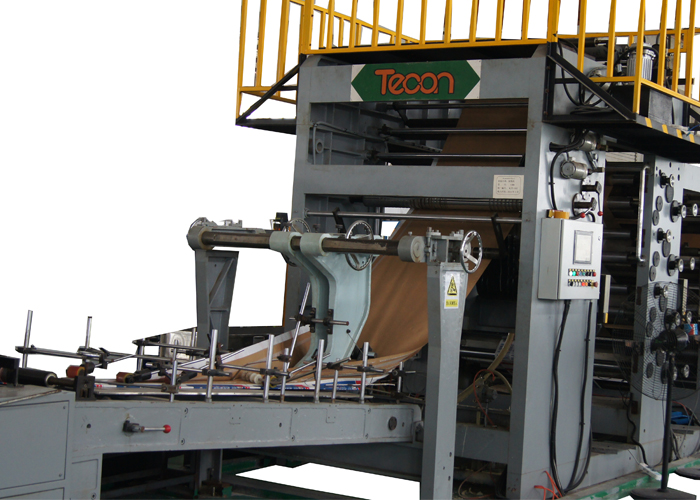

Our machine Details:

Complete Automatic Valve Paper Bag Machines / Paper Bag Manufacturing Machinery

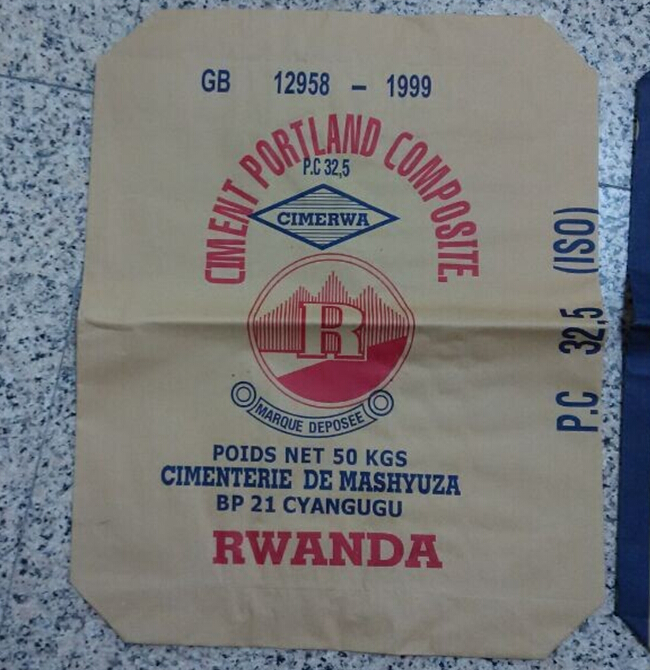

Sample bags:

Complete Automatic Valve Paper Bag Machines / Paper Bag Manufacturing Machinery

If you are interested in our products, please do not hesitate to contact us.
