3 Layer Gypsum Powder Valve Paper Bag Making Machinery With Ladder Cutting

Product Categories

Tecon Package Machinery Limited

Contact Now

Name: 3 Layer Gypsum Powder Valve Paper Bag Making Machinery With Ladder Cutting
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT9804

Certification : CE

Place of Origin : China

MOQ : 1 Tuber Machine

Price : Negotiation

Payment Terms : T/T or L/C

Supply Ability : 16 Pcs Per Year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Bearings : NSK, Japan

Frequency Converter : Delta Electronics

Layers : 3 Layers

Printing : Anilox Roller

Main drive motor : 33kw

Warrantly : A Year

Total Weight : 30 Tons

Contact Now

3 Layer Gypsum Powder Valve Paper Bag Making Machinery With Ladder Cutting

Features of our full-automatic paper bag production line:

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
4-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.

Technical parameters of our production line:

ZT9804S Tuber Machine
Operating condition

Performance

Speed	80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	380~620 mm
Type of cutting	Step cut&Flat cut
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	32 T

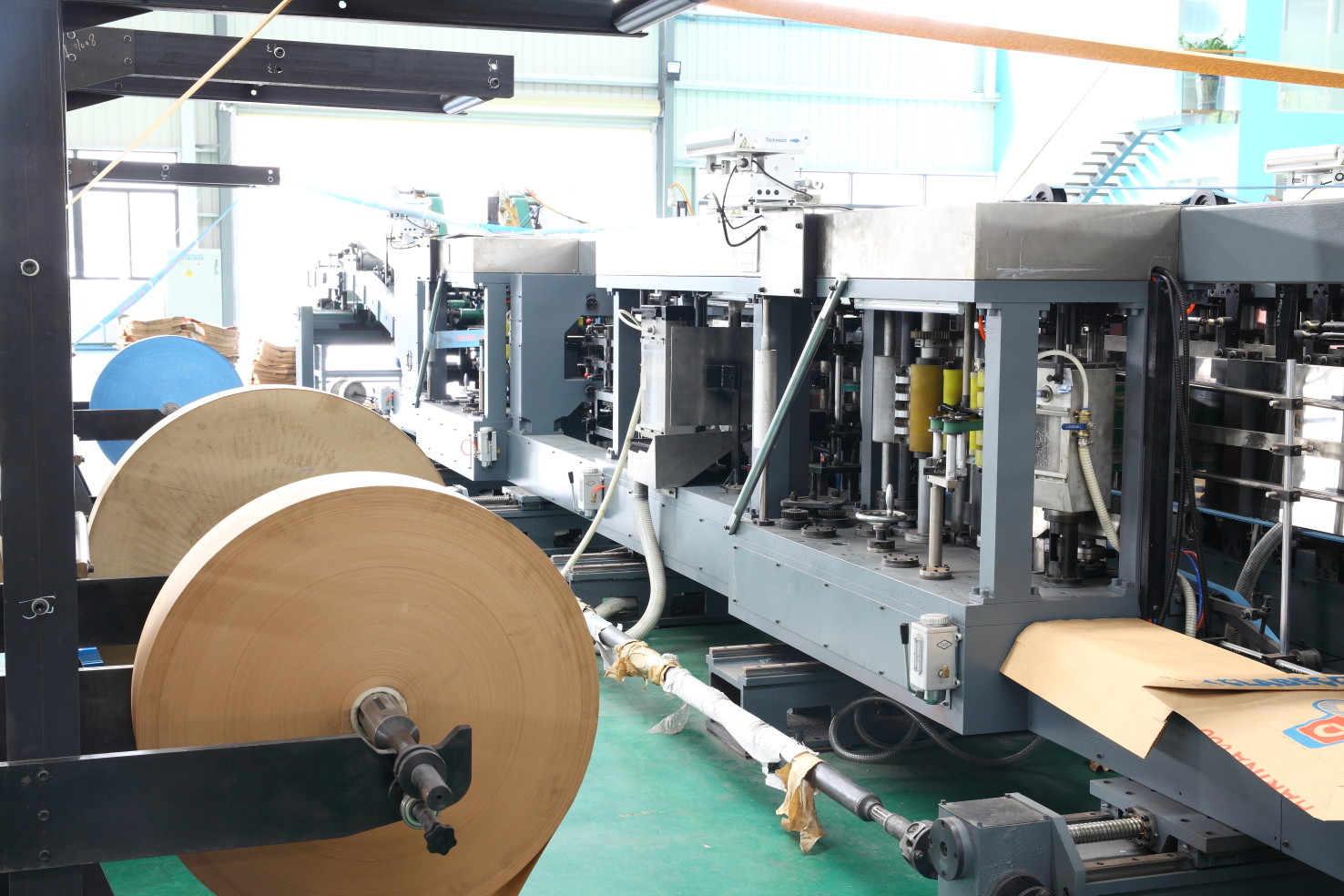

Automatic valve paper bag machine for cement

3 Layer Gypsum Powder Valve Paper Bag Making Machinery With Ladder Cutting

Welcome to contact us or visit our factory. We are ready here.
