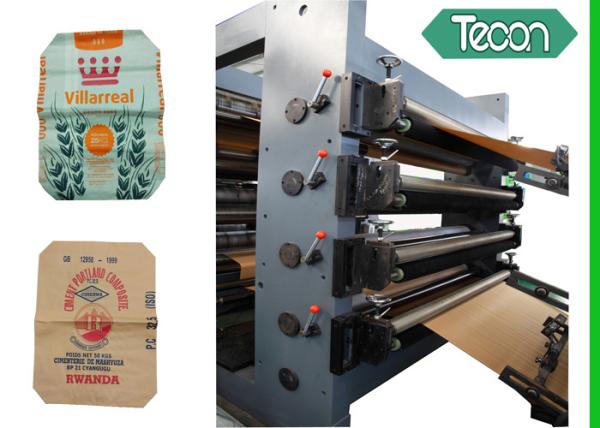

Tea / rice food paper bag making machine moisture protection with PP inliners
Paper Bag details:
Bag Width: 420~600 mm
Bottom width: 90~130mm
Length: 520~880mm
Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Colour printing: 4 colors available (ZT9802 is 2 color printing)
Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.
Technical parameters of PE film laminated paper bags forming machine:
Basic model: ZT9804&HD4913
Machine technical parameter:
Tuber Speed: 130tubes/min(MAX)
Bottomer speed: 80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Diameter of print roller: ø144～ø314 mm
Printing width: 1300 mm(MAX)
Paper reel width: 860~1260 mm
Paper reel diameter: Max. 1, 300 mm
Size of tuber: 34.3m*2.4m*2.7m( L*W*H)
Size of bottomer: 21.3m*2.3.m*1.8m ( L*W*H)
Air consumption: 1,100L/min
Power consumption: 80kw
ZT9804 Tuber Machine compose of following parts
| 4-color printing machine | 1 |
| Mill roll stands | 5 |
| Paper web guide | 1 |
| Automatic paper unwinding | 1 |
| Auxiliary web guide | 1 |
| Perforation unit | 1 |

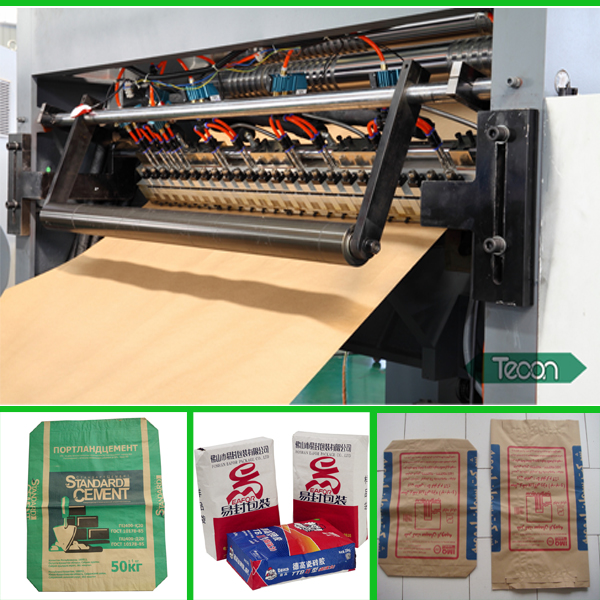

| Cross stepped gluing unit | 1 |
| Longitude seam gluing unit | 1 |
| Tubes forming unit | 1 |
| Driving tearing-off unit | 1 |
| Delivery and counting unit | 1 |
| Electrical system | 1 |
| Bearing | NSK Japan |
| Compressor | 1 |
HD4913 Bottomer machine compose of following parts
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation machine | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Automatic delivering out unit | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 |
| Vacuum-pump | 1 |
After-sale service
1.Provide training during and after the commissioning at the buyer site.
2.One year warranty period from the acceptance at the buyer site.
3.Provide life long technical services and effective solutions.
PLC panel
