High-speed and Automatic Bottomer and Tuber of Food Paper Bag Making Machine for Tea , Seed , Food
- Features of our full-automatic paper bag production line
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
- 2~4 paper layers, with one extra PE/PP film available;
- 35~50 million bags/year;
- Different types for cement, chemicals, foods, tea, etc;
- 4-color automatic printing;
- Full technical service for installation, training and maintenance;
- Full solution for factory construction and materials purchase;
- Flat & glued bottom with filling valve;
- Technical parameters of our production line
| Item No. | Name | Unit | Specification Value |
| 1 | Bag Spew. | Length of bag tube | ㎜ | Cutoff length + 40 |
| Cutoff length | ㎜ | 700 -1050(±4)29 Grades,Each grade 12.5 |
| Width of bag tube | ㎜ | 400 – 600(no grade) adjustment |
| 2 | Printing spew. | Printing length | ㎜ | 600 – 950 |
| Printing width | ㎜ | 1100 |
| Printing ink | | Ink |
| Color category | | two-color overprint, four-color overprint |
| Formed thickness | ㎜ | 6 |
| 3 | | Paper layer | layer | 3 – 4 |
| 4 | | Production efficiency | bag / min | 100 – 150 |
| Name of Glue | | Metamorphic Starch, Methyl or CMC |
| 5 | Scroll spew. | Width of Scroll | ㎜ | 1220 |
| Scroll diameter | ㎜ | 1220 |
| Diameter of scroll core | ㎜ | 75 – 80 |
| 6 | Main motor | Main Motor | | Y180L – 4 TYPE, 22KW 1 unit |
| Main motor, delta belt | | C-type, length: 2500mm quantity: 6 |
| 7 | Total power | KW | 30.9 |
| Weight | T | 34 |
| Outline dimensions (Length x Width x Height) | M | 34 x 2.4 x 2.7 |

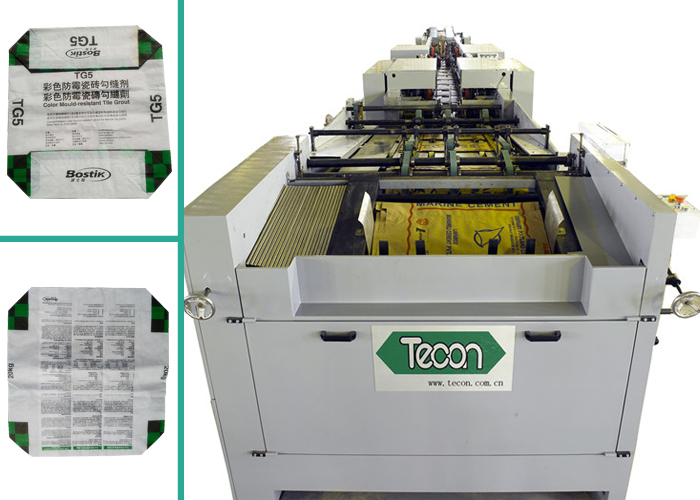

HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
| Working hour | 22 hours/day |
| Design temperature | 0~40℃ |
| Design humidity | MAX. 95% |
| Number required | 1 unit |
| Model name | HD4916B |
Performance
| Max Speed | 110 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length | 520~880mm |
| Bag width | 420~600 mm |
| Bottom width | 90~160mm |
| Bottom open width | 200~440mm |
| Distance between bottom centers | 420~780mm |
| Valve sheet length | 100~300mm(adjustable) |
| Valve sheet width | 120~240mm(adjustable) |
| Main drive motor | 33kw |
| Total weight | 25T |
| Size of whole set | 23.5m×1.8m×1.8m ( L×W×H) |
| Valve sheet reel diameter | Max.1,300mm |
| Number Patch Length | (2~4)layers＋1PP film |
Composing of the production line
HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation of the exhaust outlet unit | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Automatic delivering out unit | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 (German Siemens) |
| Vacuum-pump | 1 (German Rietschele) |
| Bearing | (Janpan NSK) |
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the
first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
top three in this industry and the only one in China able to design & manufacture the whole production
line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,
Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
