130mm Bottom Width Valve Paper Bags Making Machine for Tea , Sugar Bag Manufacturing

Name: 130mm Bottom Width Valve Paper Bags Making Machine for Tea Sugar Bag Manufacturing
Brand: Tecon
Price: 1 USD

China 130mm Bottom Width Valve Paper Bags Making Machine for Tea , Sugar Bag Manufacturing wholesale

Brand Name : Tecon

Model Number : HD4913B + ZT9804

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden Case

Bottomer Weight : 22.7T

Tuber Weight : 30T

Design temperature : 0~40℃

Working hour : 22 hours/day

Tube length : 670~1035 mm

Tube width : 420~600 mm

Contact Now

Max Bottom Width 130mm Valve Paper Bag Production Line for Tea , Sugar with Strengthen Sheet

Features of our full-automatic paper bag production line

Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase;
Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc;
2-color automatic printing;
2~4 paper layers, with one extra PE/PP film available;
35~50 million bags/year.

Technical parameters of our production line

HD4913B Bottomer Machine

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4913B

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913B Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)

ZT9804 Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9804

Performance

Speed	130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

Composing of the production line
ZT9804 Tuber Machine

Name	Quantity
4-color printing machine	1
Paper reel stands	1
Paper web guider	1
Automatic paper rectifier	1
Auxiliary paper driver	1
Perforation machine	1
Latitudinal gluing machine	1
Longitude gluing machine	1
Tubes forming unit	1
Driving tearing-off	1
Delivery & counting line	1
Electric control system	1 (Schneider, German)
Air compressor	1

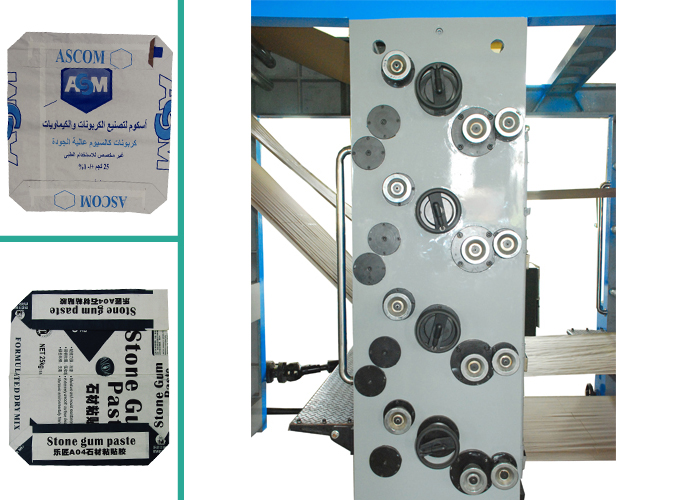

Our Machine
