Tecon Package Machinery Limited

Contact Now

Automatic Valve Open and Auto Glue Bottomer Machine for 400mm - 600mm Width Tube

Name: Automatic Valve Open and Auto Glue Bottomer Machine for 400mm 600mm Width Tube
Brand: Tecon
Price: 1 USD

China Automatic Valve Open and Auto Glue Bottomer Machine for 400mm - 600mm Width Tube wholesale

Brand Name : Tecon

Model Number : ZT9802

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Tube Length : Cutoff length + 40

Printing : 2-colour

Tube Width : 400 – 600 No Grade Adjustment

Material : Brown Paper

Liner : PP/PE

Total Weight : 30T

Contact Now

Automatic Valve Open and Auto Glue Bottomer Machine Can Produce 400 - 600mm Width Tube with No Grade Adjustment

Tecon Package Machinery Ltd is a modern high-tech company engaging in paper sack packaging machinery's research and development. We designed the first production line for

paper bag 20 years ago, and now we are listed in the world top three in this industry and

the only one in China able to design & manufacture the whole production line of bottom

sealed paper bag.

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
2-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

Technical parameters of ZT9802

Item No.	Name		Unit	Specification Value
1	Bag Spew.	Length of bag tube	㎜	Cutoff length + 40
		Cutoff length	㎜	700 -1050 (±4) 29 Grades, Each grade 12.5
		Width of bag tube	㎜	400 – 600 (no grade) adjustment
2	Printing spew.	Printing length	㎜	600 – 950
		Printing width	㎜	1100
		Printing ink		Ink
		Color category		two-color overprint, four-color overprint
		Formed thickness	㎜	6
3		Paper layer	layer	3 – 4
4		Production efficiency	bag / min	100 – 150
4		Name of Glue		Metamorphic Starch, Methyl or CMC
5	Scroll spew.	Width of Scroll	㎜	1220
		Scroll diameter	㎜	1220
		Diameter of scroll core	㎜	75 – 80
6	Main motor	Main Motor		Y180L – 4 TYPE, 22KW 1 unit
6	Main motor	Main motor, delta belt		C-type, length: 2500mm quantity: 6
7	Total power		KW	30.9
	Weight		T	34
	Outline dimensions (Length x Width x Height)		M	34 x 2.4 x 2.7

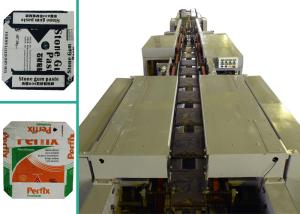

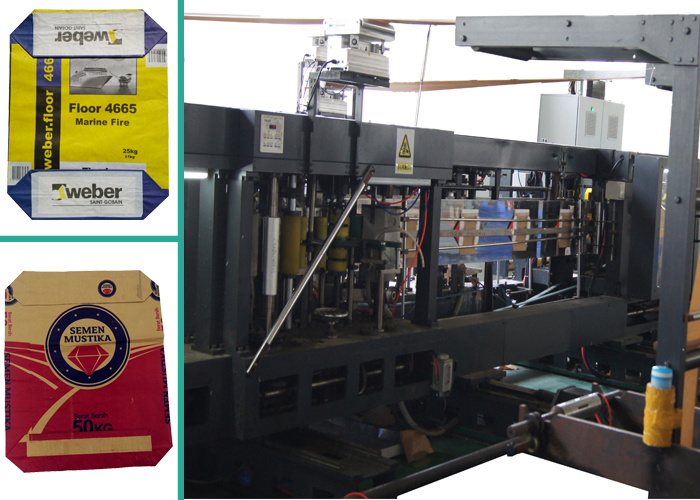

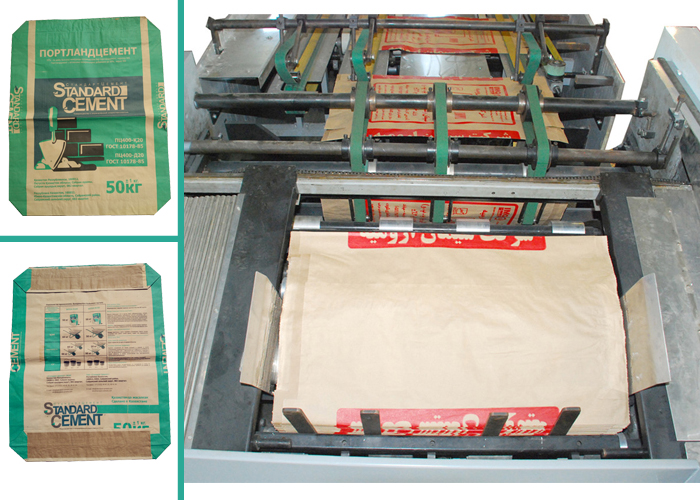

Sample Bag and Machine

Automatic Valve Open and Auto Glue Bottomer Machine for 400mm - 600mm Width Tube
