Healthy Heat Iron & Ceramic Cement Paper Bag manufacturing Machine 30 Meters Length

Name: Healthy Heat Iron amp Ceramic Cement Paper Bag manufacturing Machine 30 Meters Length
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT + HD

Certification : CE

Place of Origin : China

MOQ : 1 Set Machine

Price : Negotiation

Payment Terms : T/T or L/C

Supply Ability : 16Pcs Per Year

Delivery Time : 3-5 months after received your payment

Packaging Details : Wooden case

Gears : Bevel Gear

Differential : Micro Adjustment Gear

Bag Multiwall : More than 2 Layer

Printing : Online 2 - 4 Colors Printing

Controls : Automatic control

Machine Body : Casting Body

Height : 3 Meter

Length : More Than 30 Meters

Contact Now

High Quality Competitive CEMENT CIMENT Paper Bag Machinery ZT9804 + HD4913 Whole Production Line

Brand Name:	Tecon
Model Number:	ZT9804
Certification:	CE
Place of Origin:	China

Total Weight	30T	Main drive motor	30kw
Size	34.3m×2.4m×2.7m( L×W×H)	Air consumption	1,100L/min
Working hour	22 hours/day	Design temperature	0~40℃

Minimum Order Quantity:	1pcs
Price:	negotiation
Payment Terms:	T/T or L/C
Supply Ability:	16pcs per year
Delivery Time:	3 months after received your payment
Packaging Details:	Wooden case

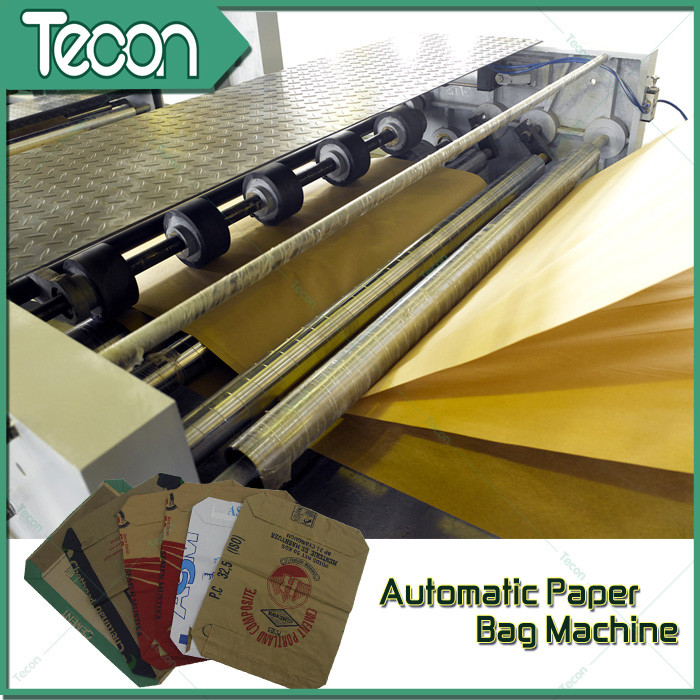

ZT9804 Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9804

Performance

Speed	130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035 mm
Tube width	420~600 mm
Space between tape steps	20 mm
Tube Cut Length	670~1035mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller	ø144～ø314 mm
Printing width	1300 mm(MAX)
Paper reel width	860~1260 mm
Paper reel diameter	Max. 1, 300 mm
Air consumption	1,100L/min
Main drive motor	30kw
Size of whole set	34.3m×2.4m×2.7m( L×W×H)
Total weight	30 T

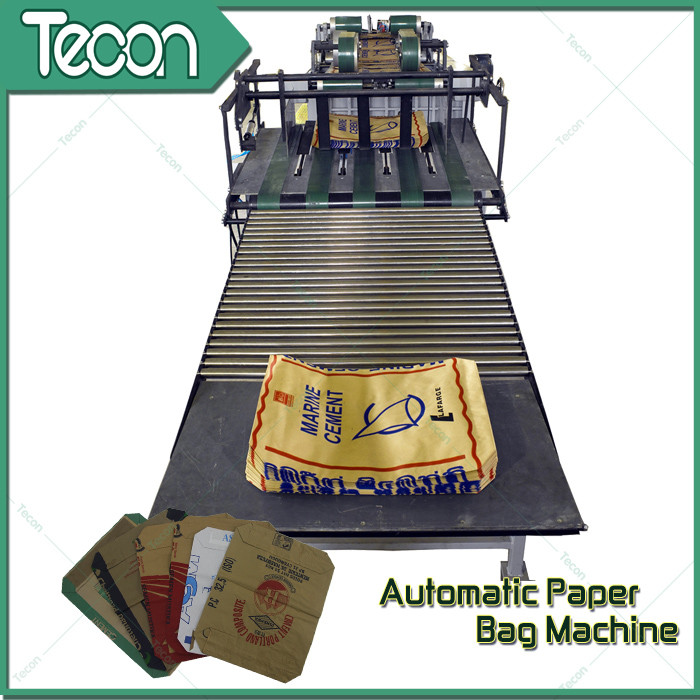

HD4913 Bottomer Machine

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4913

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913 Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)

Automatic valve paper bag machine for cement Healthy Heat Iron & Ceramic Cement Paper Bag manufacturing Machine 30 Meters Length
