Intelligent Cement Paper Bag Making Machine with Four Colors Printing

Name: Intelligent Cement Paper Bag Making Machine with Four Colors Printing
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT9804S+HD4916B

Certification : CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Working hour : 22 hours/day

Air consumption : 1,100L/min

Servo System : Yes

Weight : 30 Ton

Main drive motor : 30kw

Speed : 100-120 pcs/ min

Contact Now

Intelligent Cement Paper Bag Making Machine with Four Colors Printing

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.;
4-color automatic printing ;
2~4 paper layers, with one extra PE/PP film available ;
35~50 million bags/year;
Seaworthy packing;
covered in film and packed in pallet.
Four 40 HQ container for shipment

Technical parameters of our production line

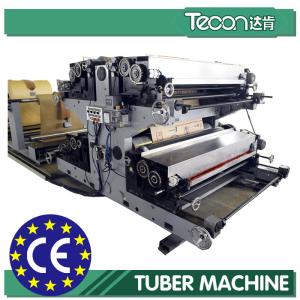

ZT9804S Tuber Machine

Performance

Speed	80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	380~620 mm
Type of cutting	Step cut&Flat cut
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	32 T

Composing of the machine
ZT9804S Tuber Machine

Name	Quantity
4-color printing machine	1
Paper reel stands	5
Paper web guide	1
Automatic paper rectifier	1
Auxiliary paper driver	1
Perforation unit	1
Latitudinal gluing machine	1
Longitude gluing machine	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electric control system	1 (Schneider)
Air compressor	1
Servo system	1

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4916B

Performance

Max Speed	110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~160mm
Bottom open width	200~440mm
Distance between bottom centers	420~780mm
Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	23.5m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm
Number Patch Length	(2~4)layers＋1PP film

Composing of the production line

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (German Siemens)
Vacuum-pump	1 (German Rietschele)
Bearing	(Janpan NSK)

Brief Introduction:

Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer.
We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.

Sample Bags
