Brown Paper Bags Sack Making Machine With Automatic Bottom Seal
Paper bag is replacing PE/PP woven bag in most of the countries now and we are facing a fast developing period. We are aiming to provide a full paper bag making solution to all over the
world, let the world find cost-effective, high automatization, high production capacity paper
bag production line. Our equipment has served Chinese paper bag industry for 20 years and started running into oversea market for 8 years. Now there are more than 25 Tecon paper
bag production lines operating in 13 countries. They are producing paper bags used for
packing cement, sugar, milk powder, rice, chemical products, etc.
HD4913 Valve Paper Bag Making Machine Performance:
| Speed | 80 - 130 bags / min ( Depends on paper quality, number of ply and operators’ skill ) |
| Bag length | 520 - 880mm |
| Bag width | 420 - 600 mm |
| Bottom width | 90 - 130mm |
| Bottom open width | 200 - 380mm |
| Distance between bottom centers | 420 - 780mm |
| Valve sheet length | 100 - 250mm |
| Valve sheet width | 120 - 170mm |
| Main drive motor | 33 kw |
| Total weight | 22.7 T |
| Size of whole set | 21.3m x 2.3m x 1.8m ( LxWxH) |
| Valve sheet reel diameter | 1300mm (MAX) |
Features of our full-automatic paper bag production line:
- Flat & glued bottom with filling valve;
- 2~4 paper layers, with one extra PE/PP film available
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system - Full solution for factory construction and materials purchase.
Part of Our Machine:
Bag Sample:
Fairs and customers:
Product Tags:
|
|

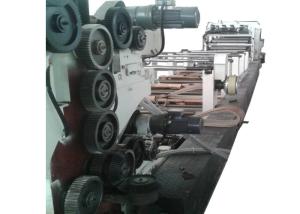

High Speed Brown Paper Bags and Sacks Making Machine With Automatic Bottom Seal Images
|
