Full-Automatic and High-speed Bottomer and Tuber of Sack Making Machine for Powder , Tea , Cement
- Features of our full-automatic paper bag production line
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
- 2~4 paper layers, with one extra PE/PP film available;
- 35~50 million bags/year;
- Different types for cement, chemicals, foods, tea, etc;
- 4-color automatic printing;
- Flat & glued bottom with filling valve;
- Full technical service for installation, training and maintenance;
- Full solution for factory construction and materials purchase.
- Technical parameters of our production line
| Item No. | Name | Unit | Specification Value |
| 1 | Bag Spew. | Length of bag tube | ㎜ | Cutoff length + 40 |
| Cutoff length | ㎜ | 700 -1050(±4)29 Grades,Each grade 12.5 |
| Width of bag tube | ㎜ | 400 – 600(no grade) adjustment |
| 2 | Printing spew. | Printing length | ㎜ | 600 – 950 |
| Printing width | ㎜ | 1100 |
| Printing ink | | Ink |
| Color category | | two-color overprint, four-color overprint |
| Formed thickness | ㎜ | 6 |
| 3 | | Paper layer | layer | 3 – 4 |
| 4 | | Production efficiency | bag / min | 100 – 150 |
| Name of Glue | | Metamorphic Starch, Methyl or CMC |
| 5 | Scroll spew. | Width of Scroll | ㎜ | 1220 |
| Scroll diameter | ㎜ | 1220 |
| Diameter of scroll core | ㎜ | 75 – 80 |
| 6 | Main motor | Main Motor | | Y180L – 4 TYPE, 22KW 1 unit |
| Main motor, delta belt | | C-type, length: 2500mm quantity: 6 |
| 7 | Total power | KW | 30.9 |
| Weight | T | 34 |
| Outline dimensions (Length x Width x Height) | M | 34 x 2.4 x 2.7 |
HD4913B Bottomer Machine
Operating condition
| Working hour | 22 hours/day |
| Design temperature | 0~40℃ |
| Design humidity | MAX. 95% |
| Number required | 1 unit |
| Model name | HD4913B |
Performance
| Speed | 80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length | 520~880mm |
| Bag width | 420~600 mm |
| Bottom width | 90~130mm |
| Bottom open width | 200~380mm |
| Distance between bottom centers | 420~780mm |
| Valve sheet length | 100~250mm |
| Valve sheet width | 120~170mm |
| Main drive motor | 33kw |
| Total weight | 22.7T |
| Size of whole set | 21.3m×2.3.m×1.8m ( L×W×H) |
| Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4913B Bottomer Machine
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation machine | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Automatic delivering out unit | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 (Schneider, German) |
| Vacuum-pump | 1 (Schneider, German) |
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed
the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the
world top three in this industry and the only one in China able to design & manufacture the whole
production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,
Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
Product Tags:
|
|

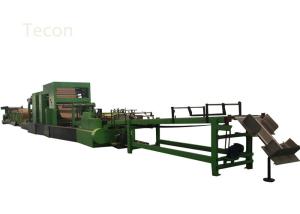

Full Automatic High Speed Sack Making Machine Bottomer and Tuber for Powder , Tea , Cement Bags Images
|
