High-Tech Paper Bag Fabrication Facilities for Making Multiwall Paper Bag
Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency
conversion motor to save more electricity and regulate speed more freely. The color code tracker
with good performance makes the sealing and cutting length more accurate and the error smaller.
Technical parameters of Valve paper bag production line:
ZT9802Tuber
1. Equipment Model (ZT9802S)
2. Tube Length: 400~1400mm
3. Tube Width: 320~620mm
4. Tube Cut Length: 420~1400mm
5. Printing width: 1300 mmMAX
8. Diameter of paper roll: PDø1300 mmMAX
9. Width of paper roll: 660~1260 mm
10. ube Speed(S): 130 pieces /minMAX
12. Main Drive Motor power: 47KW
13. Gross weight 33T
ZT9804 Tuber Machine compose of following parts
| 4-color printing machine | 1 |
| Mill roll stands | 5 |
| Paper web guide | 1 |
| Automatic paper unwinding | 1 |
| Auxiliary web guide | 1 |
| Perforation unit | 1 |
| Cross stepped gluing unit | 1 |
| Longitude seam gluing unit | 1 |
| Tubes forming unit | 1 |
| Driving tearing-off unit | 1 |
| Delivery and counting unit | 1 |
| Electrical system | 1 |
| Bearing | NSK Japan |
| Compressor | 1 |
HD4913 bottomer
1. Working speed:80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
2. Bag length:520~880mm
3. Bag width420~600 mm
4. Bottom width:90~130mm
5. Bottom centers distance:420~780mm
6. Valve sheet length:100~250mm
7. Valve sheet width:120~170mm
8. Main drive motor:33kw
9. Size of whole set:21.3m×2.3.m×1.8m ( L×W×H)
HD4913 Bottomer machine compose of following parts
| Name | Quantity |
| High speed feeder machine | 1 |
| Perforation machine | 1 |
| Tube opening unit | 1 |
| Automatic gluing machine | 1 |
| Scrip sealing machine | 1 |
| Bag bottom turning unit | 1 |
| Counting and delivery line | 1 |
| Automatic delivering out unit | 1 |
| Piling up platform | 1 |
| Electric control unit | 1 |
| Vacuum-pump | 1 |
About us
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.

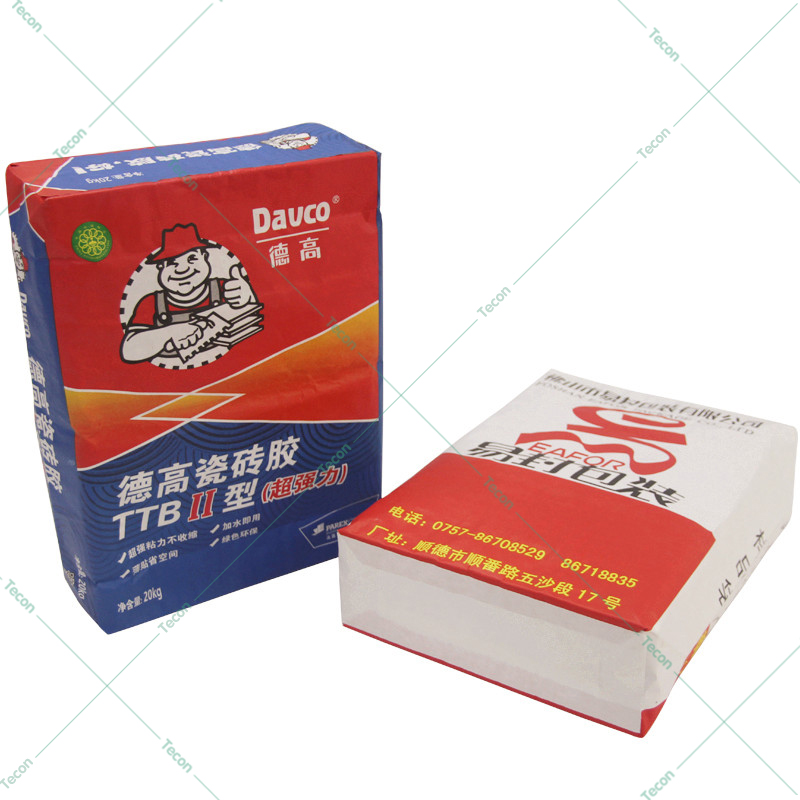

Sample Bags
