CE Certification Double Valve Pasted Bottom Sealing Bag Making Machine High Speed

Product Categories

Tecon Package Machinery Limited

Contact Now

Name: CE Certification Double Valve Pasted Bottom Sealing Bag Making Machine High Speed
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : ZT9802

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Tube Length : Cut Off Length + 40

Printing : 2 - Colours

Tube Width : 400 – 600 (no grade) adjustment

Material : Kraft Paper

Liner : PP/PE

Total Weight : 30T

Contact Now

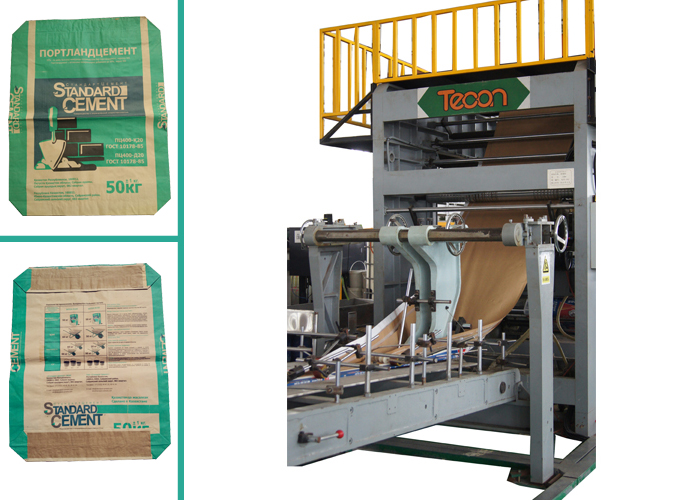

CE Certification Double Valve Pasted Bottomer Machine with Automatic 4 Color Printing

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
2-color automatic printing
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

Item No.	Name		Unit	Specification Value
1	Bag Spew.	Length of bag tube	㎜	Cutoff length + 40
		Cutoff length	㎜	700 -1050(±4)29 Grades,Each grade 12.5
		Width of bag tube	㎜	400 – 600(no grade) adjustment
2	Printing spew.	Printing length	㎜	600 – 950
		Printing width	㎜	1100
		Printing ink		Ink
		Color category		two-color overprint, four-color overprint
		Formed thickness	㎜	6
3		Paper layer	layer	3 – 4
4		Production efficiency	bag / min	100 – 150
4		Name of Glue		Metamorphic Starch, Methyl or CMC
5	Scroll spew.	Width of Scroll	㎜	1220
		Scroll diameter	㎜	1220
		Diameter of scroll core	㎜	75 – 80
6	Main motor	Main Motor		Y180L – 4 TYPE, 22KW 1 unit
6	Main motor	Main motor, delta belt		C-type, length: 2500mm quantity: 6
7	Total power		KW	30.9
	Weight		T	34
	Outline dimensions (Length x Width x Height)		M	34 x 2.4 x 2.7
