Brand Name : Tecon
Model Number : HD4913B
Certification : CE
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Payment Terms : T/T or L/C
Supply Ability : 16pcs per year
Delivery Time : 3-5 months after received your payment
Packaging Details : Wooden case
Electrical system : Schneider, France
Bearing : (NSK, Japan) No Special Gear
Bag Type : For Cement, Chemicals, Foods, Milk Powder
Output : 35 - 50 million bags/year
Paper Reel Racks : 2 - 4 paper layers, with one extra PE / PP film available
Sealing & Cutting : Heat-Sealing Heat-Cutting
Paper Thickness : Normal Specification Paper
Printing style : Flexo printing, 4 colors
Auto Multi - step Cut Paper Cement Bag Making Machine with Servo System
Features of our full-automatic paper bag production line:

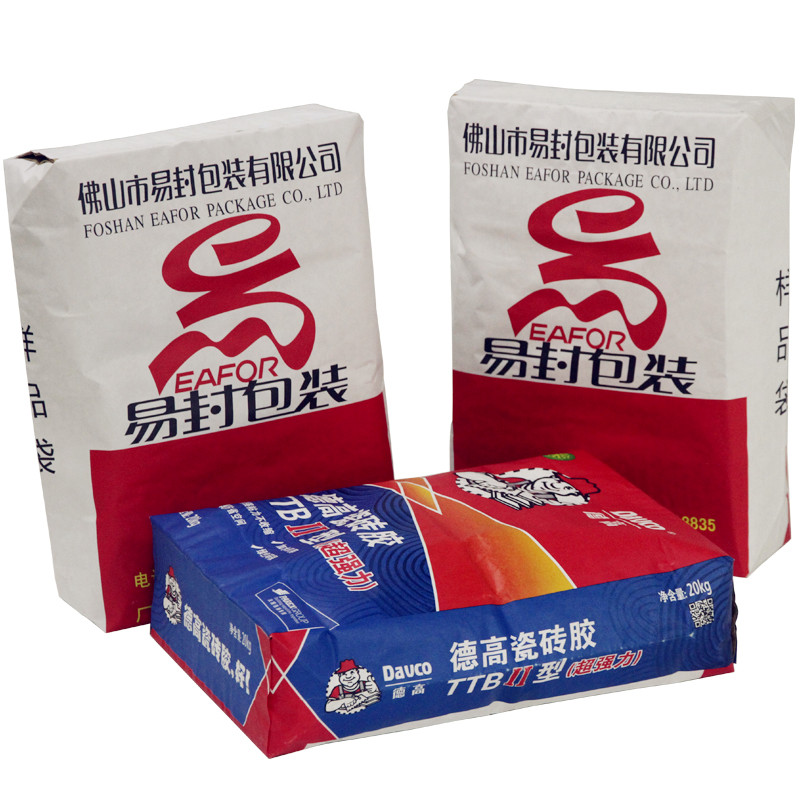

1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 2-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters of our production line:
HD4913B Bottomer Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4913B |
Performance
Speed | 80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~130mm |
Bottom open width | 200~380mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~250mm |
Valve sheet width | 120~170mm |
Main drive motor | 33kw |
Total weight | 22.7T |
Size of whole set | 21.3m×2.3.m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4913B Bottomer Machine
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 (Schneider, German) |
Vacuum-pump | 1 (Schneider, German) |
