Automatic Bottom-pasted Cement Paper Bag Making Machine Valve Paper Bags Production Line
Brief Introduction:
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
Features of our full-automatic paper bag production line:
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 4-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system - Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
Technical parameters of our production line:
ZT9804 Tuber Machine
Operating condition
| Working hour | 22 hours/day |
| Design temperature | 0~40℃ |
| Design humidity | MAX. 95% |
| Number required | 1 unit |
| Model name | ZT9804 |
Performance
| Speed | 130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length | 670~1035 mm |
| Tube width | 420~600 mm |
| Space between tape steps | 20 mm |
| Tube Cut Length | 670~1035mm |
| Number of ply | 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Diameter of print roller | ø144～ø314 mm |
| Printing width | 1300 mm(MAX) |
| Paper reel width | 860~1260 mm |
| Paper reel diameter | Max. 1, 300 mm |
| Air consumption | 1,100L/min |
| Main drive motor | 30kw |
| Size of whole set | 34.3m×2.4m×2.7m( L×W×H) |
| Total weight | 30 T |
Composing of the production line
ZT9804 Tuber Machine
| Name | Quantity |
| 4-color printing machine | 1 |
| Paper reel stands | 1 |
| Paper web guider | 1 |
| Automatic paper rectifier | 1 |
| Auxiliary paper driver | 1 |
| Perforation machine | 1 |
| Latitudinal gluing machine | 1 |
| Longitude gluing machine | 1 |
| Tubes forming unit | 1 |
| Driving tearing-off | 1 |
| Delivery & counting line | 1 |
| Electric control system | 1 (Schneider, German) |
| Air compressor | 1 |

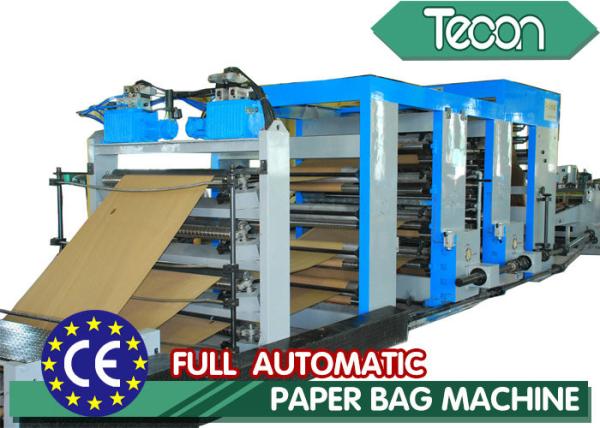

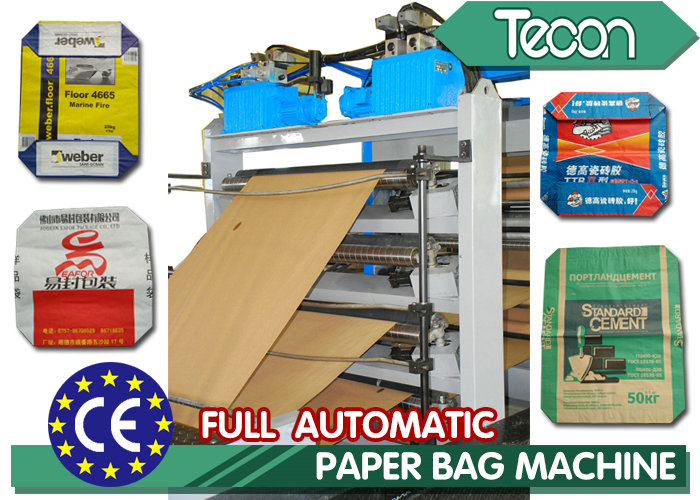

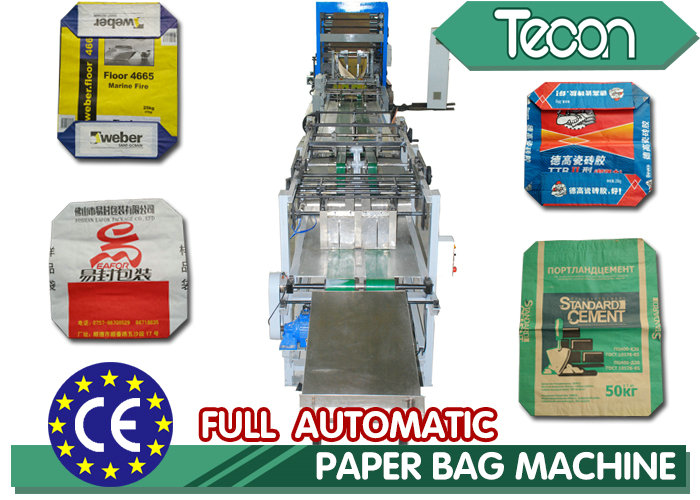

Our machine:
Automatic valve paper bag machine for cement,chemicals and food
