CE Certificate Automatic Cement Paper Bag Making Machine with Finishing Motor

Name: CE Certificate Automatic Cement Paper Bag Making Machine with Finishing Motor
Brand: Tecon
Price: 1 USD

China CE Certificate Automatic Cement Paper Bag Making Machine with Finishing Motor wholesale

Brand Name : Tecon

Model Number : ZT9802S+HD4916BD

Certification : CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Printing : 2~4-colour

Air consumption : 1,100L/min

Servo System : Yes

Number of ply : 2~4paper+1 PP/PE

Bottom Center Distance : 290～860 mm

Material : Paper

Contact Now

CE Certificate Automatic Cement Paper Bag Making Machine with Finishing Motor

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.;
4-color automatic printing ;
2~4 paper layers, with one extra PE/PP film available ;
35~50 million bags/year;
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system ;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase.

Technical parameters of our production line

ZT9802S Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9802S

Performance

Speed	100~160 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	320~620 mm
Type of cutting	Step cut/ Step cut + flat cut
Tube Cut Length	420~1400mm
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	33 T

Composing of the machine
ZT9802S Tuber Machine

Name	Quantity
2-color printing machine	1
Mill roll stands	5
Paper web guide	1
Automatic paper unwinding	1
Auxiliary web guide	1
Perforation unit	1
Cross stepped gluing unit	1
Longitude seam gluing unit	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electrical system	1 (Schneider, France)
Bearing	(NSK, Japan)
Compressor	1
Servo motors	4

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4916BD

Performance

	HD4916BD
Speed	MAX 80 bags/min
Tube Width	380～620 mm
Bottom Width	80～160 mm
Valve Sheet Length *Width	(100-300)﹡(120-340)adjustable
Bag Length	390～1020 mm
Bottom Center Distance	290～860 mm
Number of ply	2~4paper+1 PP/PE
Strength sheet unit	YES
Strength sheet length *width	(270～520)﹡(80～160)
Main Drive Motor	35KW
Machine size	23.5﹡2.3﹡1.8(M)
Machine weight	N34(T)

Composing of the production line

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (German Siemens)
Vacuum-pump	1 (German Rietschele)
Bearing	(Janpan NSK)

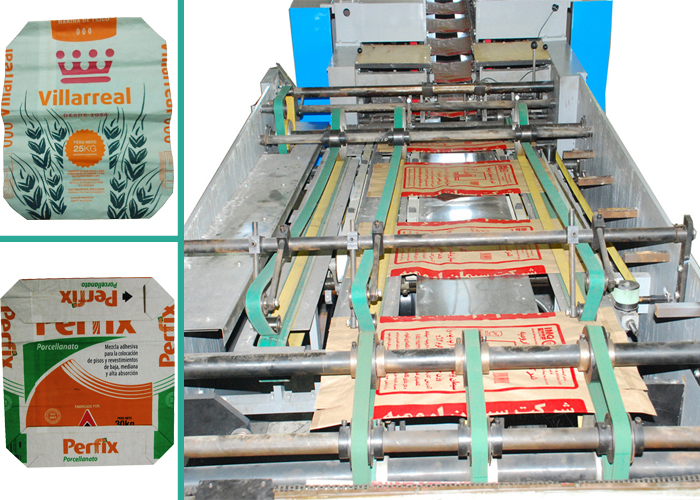

Our Machine
