Automatic Glued Valve Paper Bag Making Machinery with Web Guide and Servo System

Name: Automatic Glued Valve Paper Bag Making Machinery with Web Guide and Servo System
Brand: Tecon
Price: 1 USD

China Automatic Glued Valve Paper Bag Making Machinery with Web Guide and Servo System wholesale

Brand Name : Tecon

Model Number : ZT9804S+HD4916B

Certification : CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 5 months after received your payment

Packaging Details : Wooden case

Working hour : 22 hours/day

Air consumption : 1,100L/min

Servo System : Yes

Number of ply : 2~4paper+1 PP/PE

Max Speed : 110 bags/min

Distance between bottom centers : 420~780mm

Contact Now

Automatic Glued Valve Paper Bag Making Machine with Web Guide and Servo System

Features of our full-automatic paper bag production line

Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.;
4-color automatic printing ;
2~4 paper layers, with one extra PE/PP film available ;
35~50 million bags/year;
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system ;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase.

Technical parameters of our production line

ZT9804S Tuber Machine
Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	ZT9804S

Performance

Speed	80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	400~1400 mm
Tube width	380~620 mm
Type of cutting	Step cut&Flat cut
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	47kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	32 T

Composing of the machine
ZT9804S Tuber Machine

Name	Quantity
4-color printing machine	1
Paper reel stands	5
Paper web guide	1
Automatic paper rectifier	1
Auxiliary paper driver	1
Perforation unit	1
Latitudinal gluing machine	1
Longitude gluing machine	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electric control system	1 (Schneider)
Air compressor	1
Servo system	1

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour	22 hours/day
Design temperature	0~40℃
Design humidity	MAX. 95%
Number required	1 unit
Model name	HD4916B

Performance

Max Speed	110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~160mm
Bottom open width	200~440mm
Distance between bottom centers	420~780mm
Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	23.5m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm
Number Patch Length	(2~4)layers＋1PP film

Composing of the production line

HD4916B Bottomer Machine

(bottomer with strength sheet pasting unit)

Name	Quantity
High speed feeder machine	1
Perforation of the exhaust outlet unit	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (German Siemens)
Vacuum-pump	1 (German Rietschele)
Bearing	(Janpan NSK)

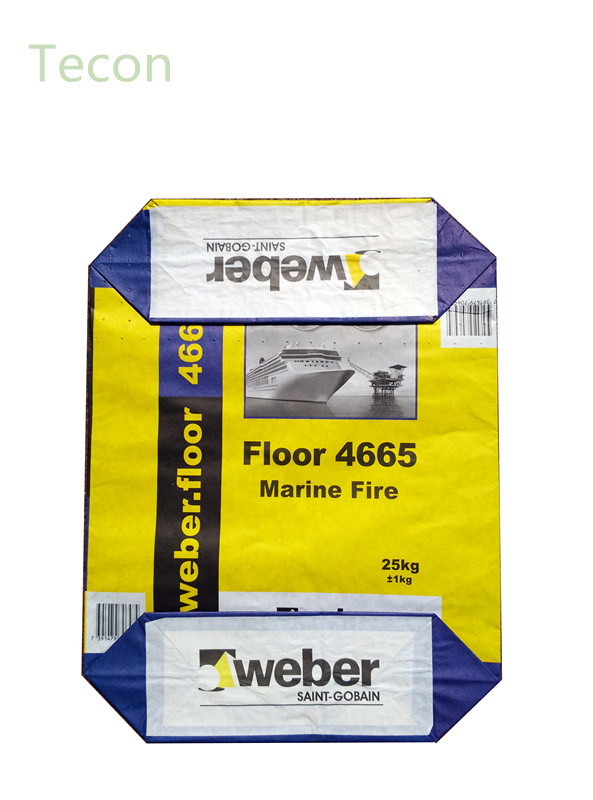

Sample Bag
